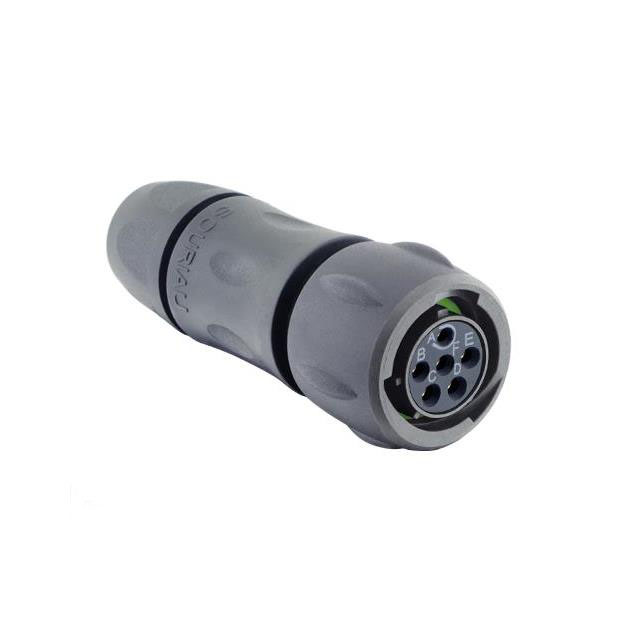

Specification	UTSX6JC10E98S

Backshell Material, Plating	Nylon, Polyamide (PA)
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating	6 A
Fastening Type	Bayonet Lock
Features	Backshell, Coupling Nut, UV Resistant
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	Neoprene
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert (Maximum)	98
Shell Size - Insert (Minimum)	10
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	250 V
