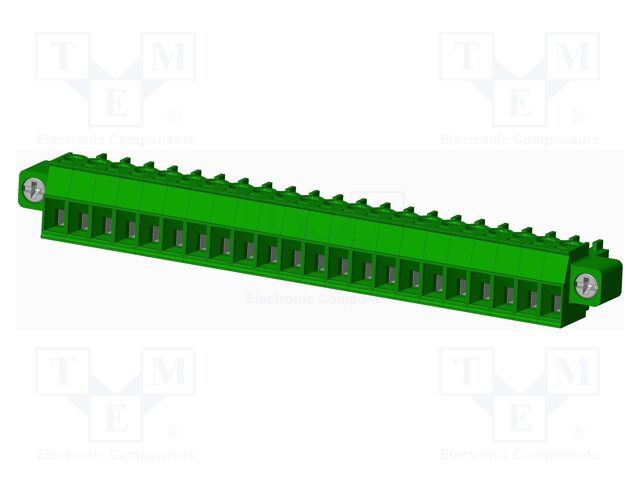

Specification	TJ2211830000G

Color	Gray
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - IEC	10.5 A
Current - UL	10 A
Housing Material	Thermoplastic
Insulation Height	0.437 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	22
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	0.138 in
Plug Wire Entry Angle	180 °
Positions Per Level	22
Screw Size	M2
Termination Style	Screw
Type	Female Sockets, Plug
Voltage - IEC	300 V
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	28 AWG
Wire Gauge or Range - AWG (Min)	16 AWG
Wire Gauge or Range - mm²	1.5 mm²
Wire Strip Length (Max)	7 mm
Wire Strip Length (Min)	6 mm

TJ22 Series

Part	Number of Positions	Type	Mounting Type	Plug Wire Entry Angle	Voltage - UL	Positions Per Level	Contact Mating Finish	Pitch	Color	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Number of Levels	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Current - UL	Features	Torque - Screw	Screw Size	Wire Strip Length (Max)	Wire Strip Length (Min)	Insulation Height	Contact Material	Material Flammability Rating	Housing Material	Current - IEC	Wire Gauge or Range - mm²	Voltage - IEC	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)
McGill Microwave Systems TJ2251070000G	22	Female Sockets Plug	Free Hanging (In-Line)	180 °	300 V	22	Tin	5.08 mm	Black	Screw	-40 °C	115 °C	1	24 AWG	12 AWG	20 A	Mating Flange Retention Latches (Non-Wire Side)	0.56 Nm	M3	8 mm	7 mm	0.594 in	Copper	UL94 V-0	Thermoplastic
McGill Microwave Systems TJ2231540000G	22	Female Sockets Plug	Free Hanging (In-Line)	180 °	300 V	22	Tin	0.15 in	Green	Screw	-40 °C	115 °C	1	28 AWG	16 AWG	10 A	Strain Relief		M2	7 mm	6 mm		Phosphor Bronze	UL94 V-0	Thermoplastic	10.5 A	1.5 mm²	300 V
McGill Microwave Systems TJ2211540000G	22	Female Sockets Plug	Free Hanging (In-Line)	180 °	300 V	22	Tin	0.138 in	Green	Screw	-40 °C	115 °C	1	28 AWG	16 AWG	10 A	Strain Relief		M2	7 mm	6 mm		Phosphor Bronze	UL94 V-0	Thermoplastic	10.5 A	1.5 mm²	300 V
McGill Microwave Systems TJ2271800000G	22	Female Sockets Plug	Free Hanging (In-Line)	180 °	300 V	22	Tin	0.197 in	Gray	Screw	-40 °C	115 °C	1	24 AWG	12 AWG	20 A	Retention Latches (Non-Wire Side)	0.56 Nm	M3	8 mm	7 mm	0.594 in	Copper	UL94 V-0	Thermoplastic	20 A		300 V	2.5 mm²	0.34 mm²
McGill Microwave Systems TJ2271500000G	22	Female Sockets Plug	Free Hanging (In-Line)	180 °	300 V	22	Tin	0.197 in	Green	Screw	-40 °C	115 °C	1	24 AWG	12 AWG	20 A	Retention Latches (Non-Wire Side)	0.56 Nm	M3	8 mm	7 mm	0.594 in	Copper	UL94 V-0	Thermoplastic	20 A		300 V	2.5 mm²	0.34 mm²
McGill Microwave Systems TJ2231520000G	22	Female Sockets Plug	Free Hanging (In-Line)	180 °	300 V	22	Tin	0.15 in	Green	Screw	-40 °C	115 °C	1	28 AWG	16 AWG	10 A	Mating Flange		M2	7 mm	6 mm	0.437 in	Phosphor Bronze	UL94 V-0	Thermoplastic	10.5 A	1.5 mm²	300 V
McGill Microwave Systems TJ2231830000G	22	Female Sockets Plug	Free Hanging (In-Line)	180 °	300 V	22	Tin	0.15 in	Gray	Screw	-40 °C	115 °C	1	28 AWG	16 AWG	10 A			M2	7 mm	6 mm	0.437 in	Phosphor Bronze	UL94 V-0	Thermoplastic	10.5 A	1.5 mm²	300 V
McGill Microwave Systems TJ2231030000G	22	Female Sockets Plug	Free Hanging (In-Line)	180 °	300 V	22	Tin	0.15 in	Black	Screw	-40 °C	115 °C	1	28 AWG	16 AWG	10 A			M2	7 mm	6 mm	0.437 in	Phosphor Bronze	UL94 V-0	Thermoplastic	10.5 A	1.5 mm²	300 V
McGill Microwave Systems TJ2231020000G	22	Female Sockets Plug	Free Hanging (In-Line)	180 °	300 V	22	Tin	0.15 in	Black	Screw	-40 °C	115 °C	1	28 AWG	16 AWG	10 A	Mating Flange		M2	7 mm	6 mm	0.437 in	Phosphor Bronze	UL94 V-0	Thermoplastic	10.5 A	1.5 mm²	300 V
McGill Microwave Systems TJ2251830000G	22	Female Sockets Plug	Free Hanging (In-Line)	180 °	300 V	22	Tin	5.08 mm	Gray	Screw	-40 °C	115 °C	1	24 AWG	12 AWG	20 A	Retention Latches (Non-Wire Side)	0.56 Nm	M3	8 mm	7 mm	0.594 in	Copper	UL94 V-0	Thermoplastic	20 A		300 V	2.5 mm²	0.34 mm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TJ2211830000G | Datasheet
