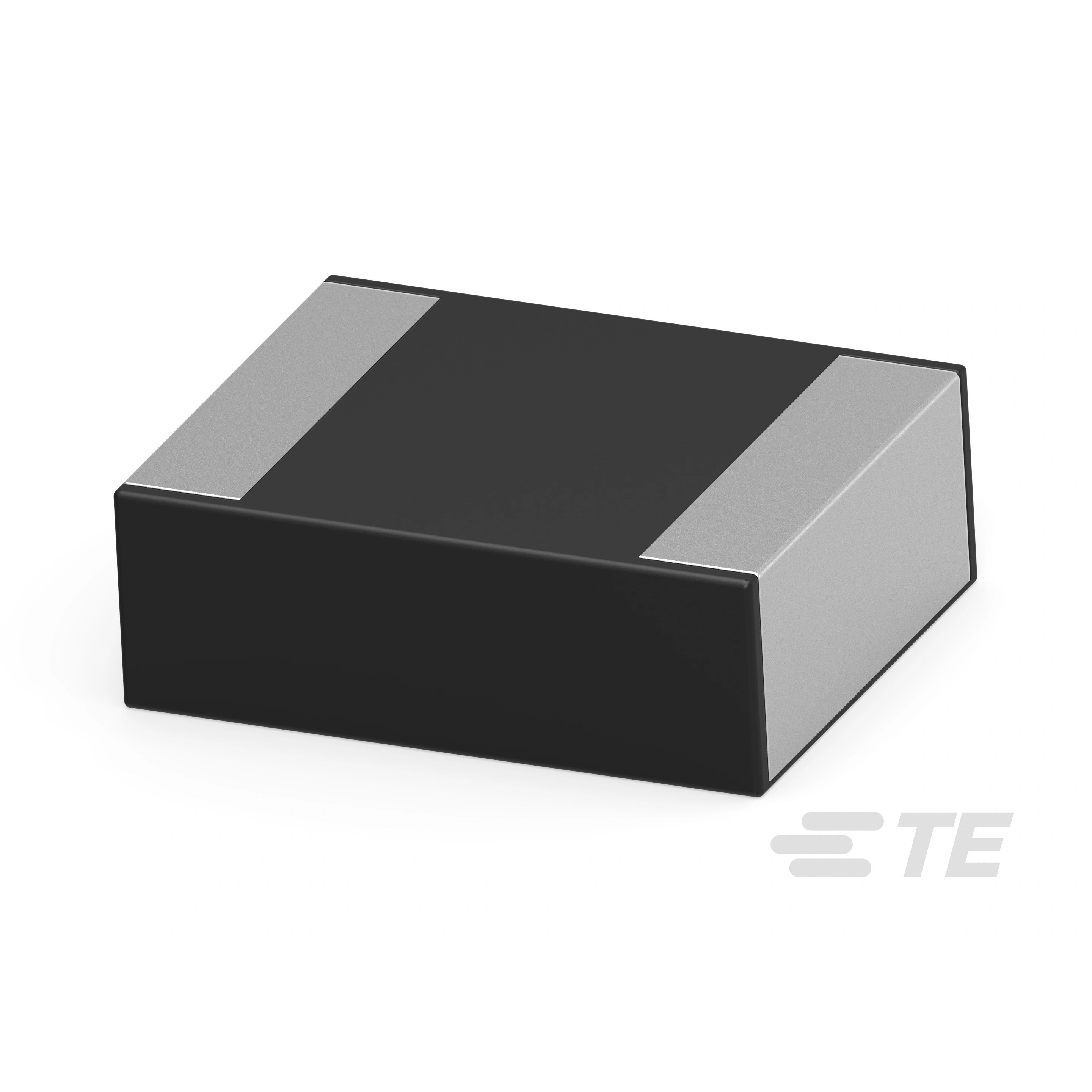

5-2176797-0
ActiveTE Connectivity AMP Connectors
3657 1310 R47 20% T&R
5-2176797-0
ActiveTE Connectivity AMP Connectors
3657 1310 R47 20% T&R
Description
General part information
5-2176797-0
3657 1310 R47 20% T&R
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-2176797-0 |
|---|---|
| Current - Saturation (Isat) | 7.7 A |
| Current Rating | 5.8 A |
| DC Resistance (DCR) (Max) | 19 mOhm |
| Frequency - Self Resonant | 120 MHz |
| Height - Seated (Max) | 0.047 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1210 (3225 Metric) |
| Package Name | 1210 |
| Shielding | Shielded |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Tolerance | 20 % |
| Type | Wirewound |
