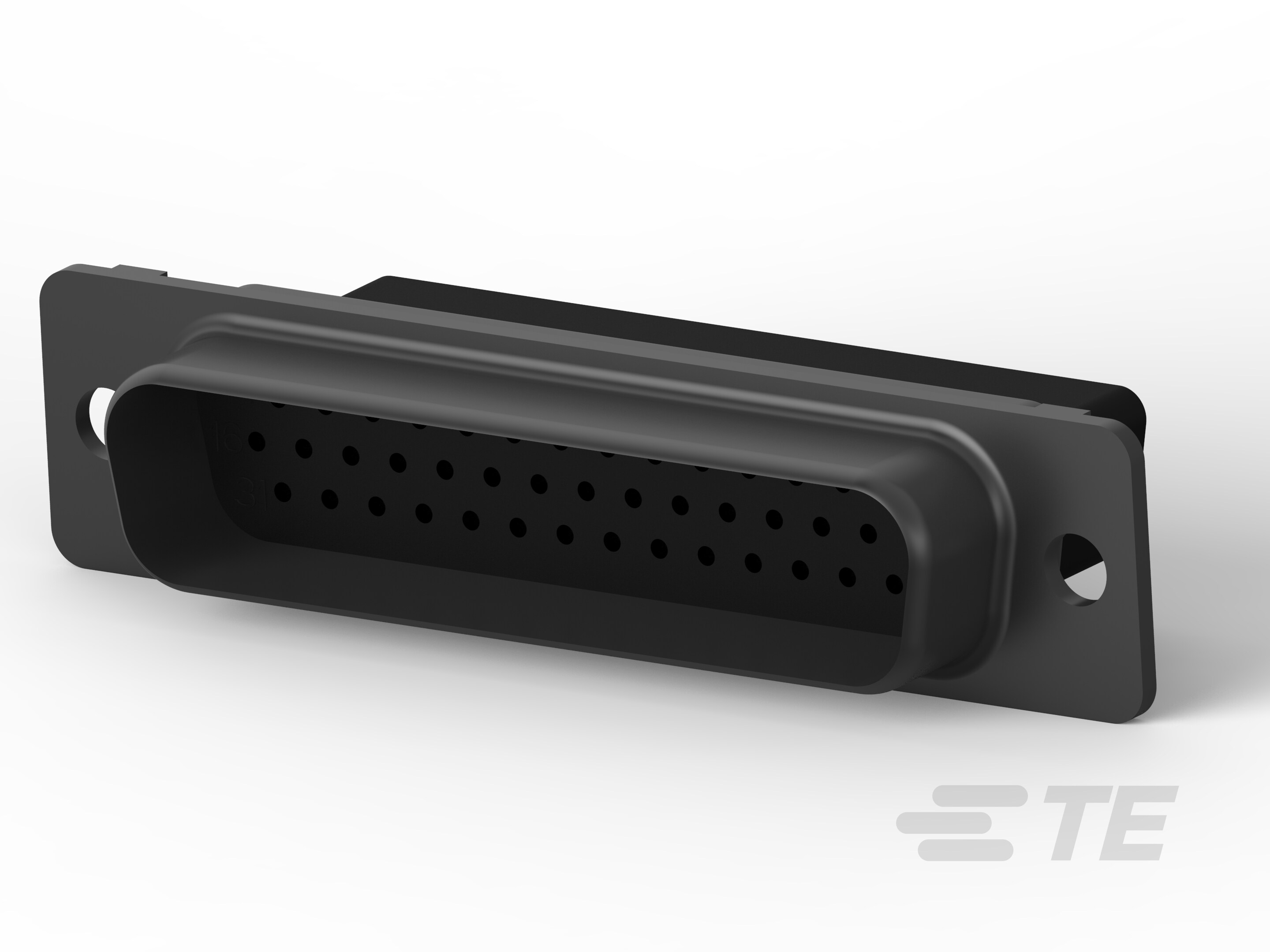

HDP-22,PLUG,SIZE 3,44 POSN-1658672-1

1658672-1

Active
TE Connectivity AMP Connectors

CONN D-SUB HD HOUSING PLUG 44POS

Find alt
HDP-22,PLUG,SIZE 3,44 POSN-1658672-1

1658672-1

Active
TE Connectivity AMP Connectors

CONN D-SUB HD HOUSING PLUG 44POS

Find alt

Description

General part information

1658672-1

44 Position D-Shaped Connector, Plug, Cable-to-Cable, Panel Mount, 3 Shell Size, 2.29 mm [.09 in] Centerline, Wire & Cable, Signal

Technical Specifications

Parameters and characteristics for this part

Specification1658672-1
Connector LayoutDB, B, High Density
Connector StyleHigh Density, D-Sub
Connector TypePlug for Male Contacts
Contact TypeSignal
FeaturesGrounding Indents
FinishTin Plated
Flange FeatureShell (Unthreaded), Housing
Mounting TypeFree Hanging (In-Line)
Number of Positions44
Number of Rows3
Shell Finish Thickness200 µin
Shell MaterialSteel
Shell Size3
