092330090
ActiveRose Enclosures
BOX ABS GRAY 11.81"L X 9.06"W
092330090
ActiveRose Enclosures
BOX ABS GRAY 11.81"L X 9.06"W
Description
General part information
092330090

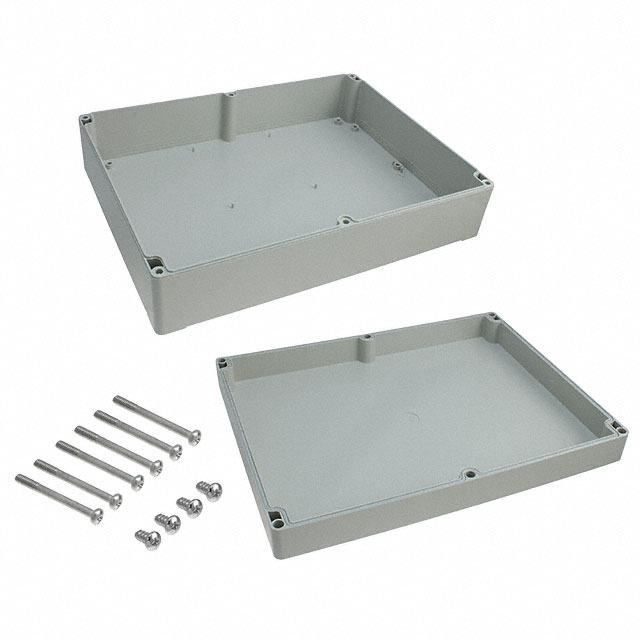

Box Plastic, ABS Gray Cover Included 11.811" L x 9.055" W (300.00mm x 230.00mm) X 3.346" (85.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 092330090 |
|---|---|
| Area (L x W) | 107 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 3.346 in |
| Material | ABS, Plastic |
| Material Flammability Rating | UL94 HB |
| Ratings | NEMA 4X, IP66 |
| Size / Dimension Length | 11.811 in |
| Size / Dimension Width | 9.055 in |
| Thickness | 0.118 in |
| Weight | 2 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
