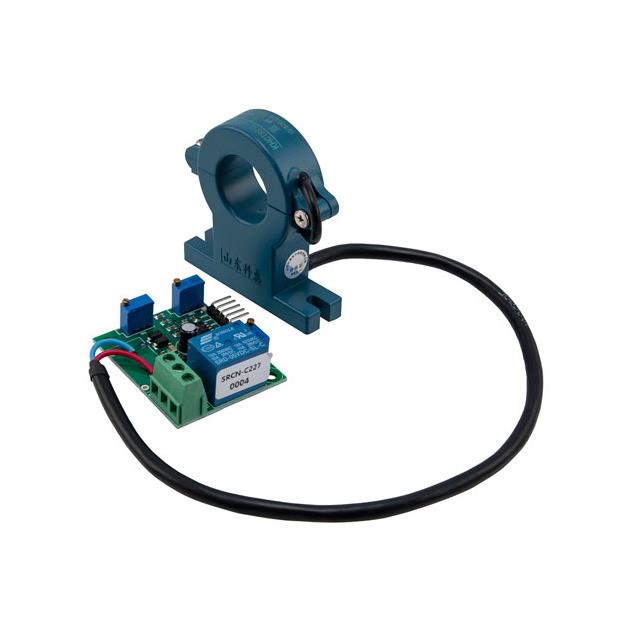

SRCN-C227
ActivePasternack
AC SENSOR, RELAY AND SWITCH OUTP
SRCN-C227
ActivePasternack
AC SENSOR, RELAY AND SWITCH OUTP
Description
General part information
SRCN-C227
Current Sensing DC 5VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | SRCN-C227 |
|---|---|
| Circuit | DPST-NO/NC (1 Form A and B) |
| Delay Time (Fixed) | 0.05 Sec |
| Delay Time Mode | Fixed |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Relay |
| Trip Current (Max) | 80 A |
| Trip Current (Min) | 5 A |
| Trip Status | Low, Energized High |
| Type | Current Sensing AC, Current Sensing DC |
| Voltage - Supply | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
