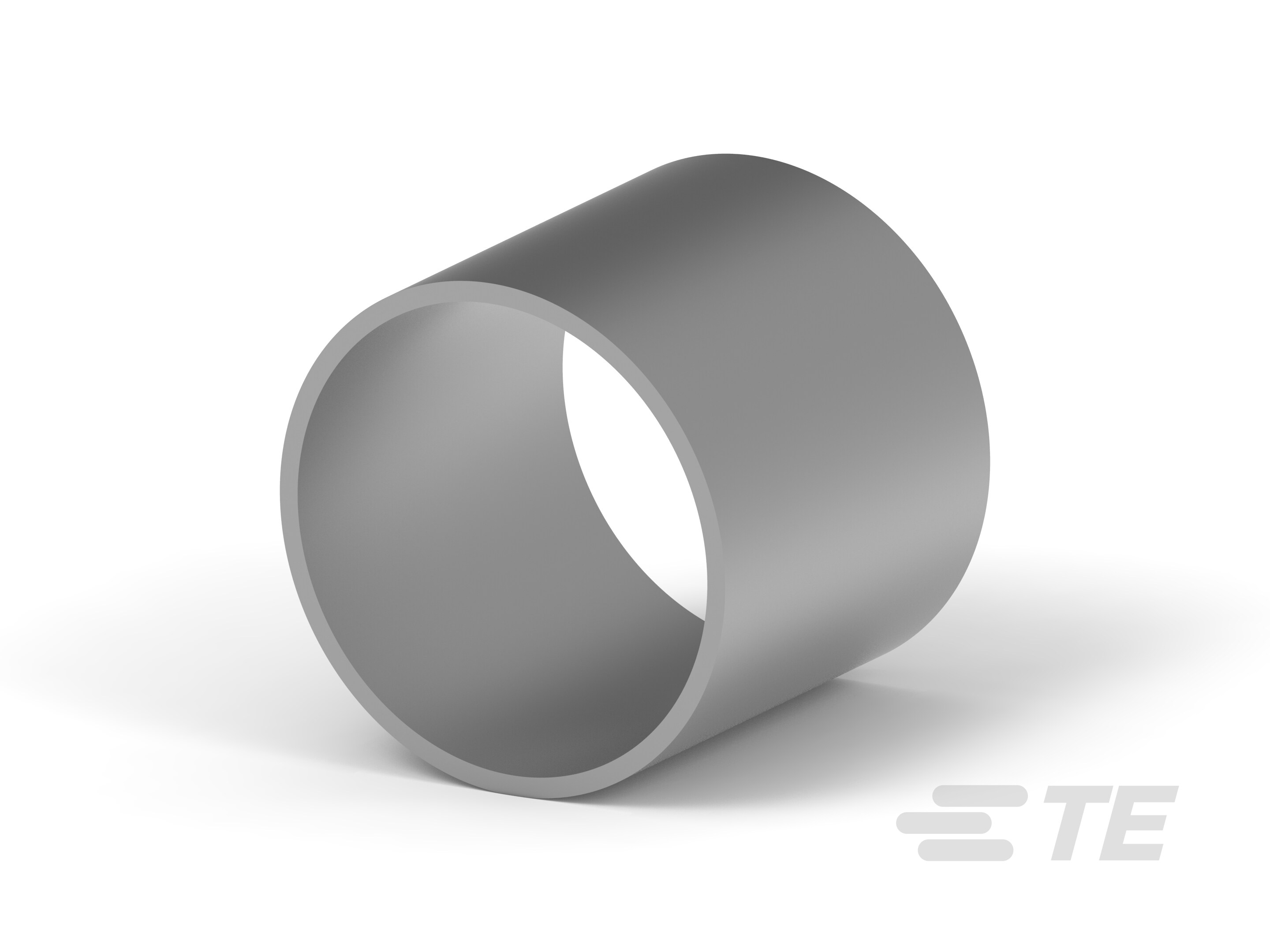

Specification	3-747579-6

Accessory Type	Outer, Ferrule
Features	Shielded
For Use With/Related Products	HDP-20, HDE-20, AMPLIMITE Series HD-20, HDP-22
Number of Positions (Max)	25
Number of Positions (Min)	9

AMPLIMITE Kit Series

...

Part	For Use With/Related Products	Accessory Type	Thread Size (Min)	Thread Size (Max)	Length - Below Head	Features	Length - Threaded Portion Below Head	Thread Size	Number of Positions	Compatible Shell Size	Compatible D-Sub Size	Color	Shielding	Material	Primary Material	Cable Type	Hardware	Cable Exit Angle	Number of Positions	Plating	Cable Exit	Number of Positions (Min)	Number of Positions (Max)
TE Connectivity AMP Connectors 5206514-4	AMPLIMITE Series HDE HDF HDP	Slide Lock Bolt	4 mm	40 mm	0.3 in	Hardware Included
TE Connectivity AMP Connectors 5205817-3	AMPLIMITE Series HDF HDP	Jackscrew Socket			0.312 in	Hardware Included	0.312 in	4-40 Screw 4-40 Socket
TE Connectivity AMP Connectors 749027-1	AMPLIMITE Series	Slide Latch							15
TE Connectivity AMP Connectors 5745122-2		Two Piece Backshell				Mating Screws 4-40			15	A	15pos HD26pos	Black	Unshielded	Nylon Polyamide (PA)	Plastic	Round	Assembly Hardware Strain Relief	180 °
TE Connectivity AMP Connectors 7-745129-9	AMPLIMITE Series	Ferrule Inner																	15 50 9
TE Connectivity AMP Connectors 745547-2	AMPLIMITE Series HDE-20	Cap (Cover)				Strain Relief			9
TE Connectivity AMP Connectors 5207719-3	AMPLIMITE Series HD HDF	Jackscrew Socket			0.56 in	Hardware Included	0.56 in	4-40 Screw 4-40 Socket
TE Connectivity AMP Connectors 5745172-2		Two Piece Backshell				Mating Screws 4-40			15	A	15pos HD26pos	Silver	Shielded	Metal Zinc Alloy	Metal	Round	Assembly Hardware Strain Relief	180 °		Nickel over Copper
TE Connectivity AMP Connectors 5205729-1		Hinged Backshell							9	E	9pos HD15pos	Black	Unshielded	Polypropylene (PP)	Plastic	Round	Assembly Hardware Strain Relief				180° 45°
TE Connectivity AMP Connectors 3-747579-2	AMPLIMITE Series HD-20 HDE-20 HDP-20 HDP-22	Ferrule Outer				Shielded																9	25
