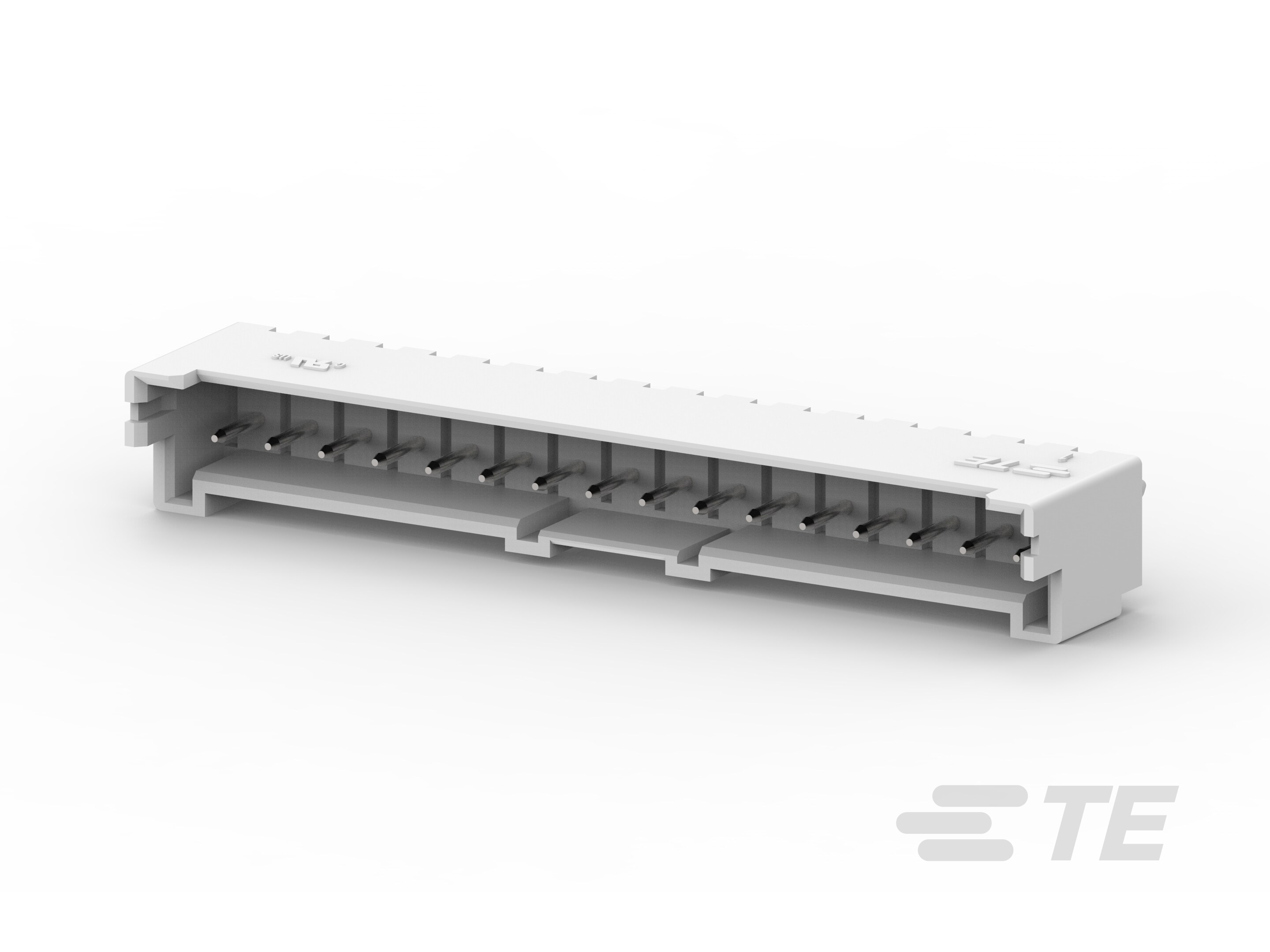

EP2.5 SHROUDED HDR ASSY 16P VERTICAL-1-1969730-6

1-1969730-6

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS EP2.5 SHROUDED HDR ASSY 16P VERTICAL

Find alt
EP2.5 SHROUDED HDR ASSY 16P VERTICAL-1-1969730-6

1-1969730-6

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS EP2.5 SHROUDED HDR ASSY 16P VERTICAL

Find alt

Description

General part information

1-1969730-6

PCB Mount Header, Vertical, Wire-to-Board, 16 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin (Sn), Economy Power 2.5

Technical Specifications

Parameters and characteristics for this part

Specification1-1969730-6
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Length - Post0.134 in
Contact MaterialBrass
Contact ShapeCircular
Contact TypeMale Pin
Current Rating4.2 A
Fastening TypeFriction Lock
FeaturesBoard Guide
Insulation ColorNatural
Insulation Height0.346 in
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions16
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Pitch - Mating0.098 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationKinked Pin, Solder
Voltage Rating250 V
