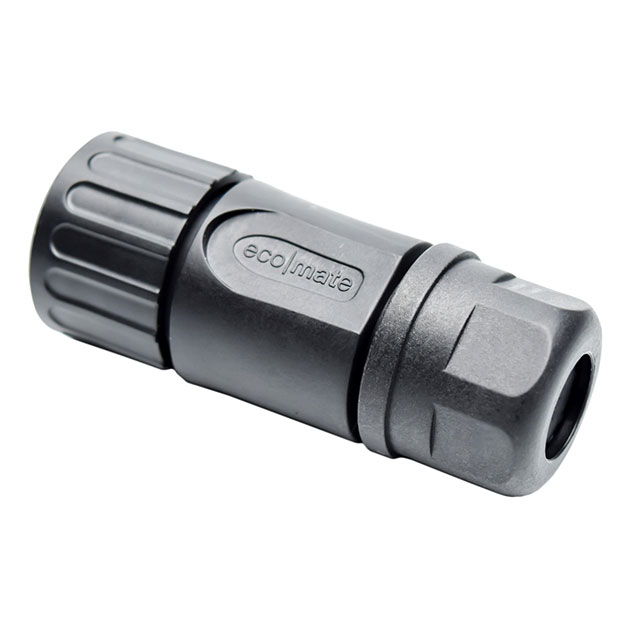

Specification	RTS6BS14N12P03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Material	Thermoplastic
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	12 mm
Shielding	Unshielded
Type	For Male Pins

RTS6BS14 Series

Part	Note	Contact Shape	Number of Positions	Contact Type	Ingress Protection IP Rating	Ingress Protection Description	Housing Color	Connector Type	Shell Size - Insert Length	Shell Size - Insert Width	Material Flammability Rating	Insert Material	Orientation	Shielding	Fastening Type	Mounting Type	Contact Size	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Features	Type	Position Types	Includes	Includes Total Count	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
McGill Microwave Systems RTS6BS14N8P03	Contacts Not Included	Circular	8	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Plug Housing	14 mm	8 mm	UL94 V-0	Thermoplastic	N (Normal)	Unshielded	Bayonet Lock	Free Hanging (In-Line)	16 S	Thermoplastic	125 °C	-40 °C	Backshell Coupling Nut	For Male Pins
McGill Microwave Systems RTS6BS14N2S03	Contacts Not Included	Circular	4	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Plug Housing	14 mm	2 mm	UL94 V-0	Thermoplastic	N (Normal)	Unshielded	Bayonet Lock	Free Hanging (In-Line)	2.5 mm 16	Thermoplastic	125 °C	-40 °C	Backshell Coupling Nut	For Female Sockets
McGill Microwave Systems RTS6BS14N7P03	Contacts Not Included	Circular	7	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Plug Housing	14 mm	7 mm	UL94 V-0	Thermoplastic	N (Normal)	Unshielded	Bayonet Lock	Free Hanging (In-Line)	16 S	Thermoplastic	125 °C	-40 °C	Backshell Coupling Nut	For Male Pins	PE
McGill Microwave Systems RTS6BS14N12S03	Contacts Not Included	Circular	12	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Plug Housing	14 mm	12 mm	UL94 V-0	Thermoplastic	N (Normal)	Unshielded	Bayonet Lock	Free Hanging (In-Line)	16 S	Thermoplastic	125 °C	-40 °C	Backshell Coupling Nut	For Female Sockets
McGill Microwave Systems RTS6BS14N4S03	Contacts Not Included	Circular	4	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Plug Housing	14 mm	4 mm	UL94 V-0	Thermoplastic	N (Normal)	Unshielded	Bayonet Lock	Free Hanging (In-Line)	2.5 mm	Thermoplastic	125 °C	-40 °C	Backshell Coupling Nut	For Female Sockets
McGill Microwave Systems RTS6BS14N3S03	Contacts Not Included	Circular	3	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Plug Housing	14 mm	3 mm	UL94 V-0	Thermoplastic	N (Normal)	Unshielded	Bayonet Lock	Free Hanging (In-Line)	8	Thermoplastic	125 °C	-40 °C	Backshell Coupling Nut	For Female Sockets		Backshell Clamp Ring Connector Nut O-Ring Seal Washer	7 pcs
McGill Microwave Systems RTS6BS14N2PHEC03	Contacts Not Included	Circular	4	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Plug Housing	14 mm	2 mm	UL94 V-0	Thermoplastic	N (Normal)	Unshielded	Bayonet Lock	Free Hanging (In-Line)	2.5 mm 16	Thermoplastic	125 °C	-40 °C	Backshell Coupling Nut	For Male Pins		Backshell Connector O-Ring Ring Seal Washer	6 pcs
McGill Microwave Systems RTS6BS14N19PHEC03	Contacts Not Included	Circular	19	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Plug Housing			UL94 V-0	Thermoplastic	N (Normal)	Unshielded	Bayonet Lock	Free Hanging (In-Line)	20	Thermoplastic	125 °C	-40 °C	Backshell Coupling Nut	For Male Pins		Backshell Connector O-Ring Ring Seal Washer	6 pcs	19	14 S
McGill Microwave Systems RTS6BS14N7S03	Contacts Not Included	Circular	7	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Plug Housing	14 mm	7 mm	UL94 V-0	Thermoplastic	N (Normal)	Unshielded	Bayonet Lock	Free Hanging (In-Line)	16 S	Thermoplastic	125 °C	-40 °C	Backshell Coupling Nut	For Female Sockets	PE
McGill Microwave Systems RTS6BS14N2P03	Contacts Not Included	Circular	4	Crimp	IP67 IP69K	Dust Tight Water Resistant Waterproof	Black	Plug Housing	14 mm	2 mm	UL94 V-0	Thermoplastic	N (Normal)	Unshielded	Bayonet Lock	Free Hanging (In-Line)	2.5 mm 16	Thermoplastic	125 °C	-40 °C	Backshell Coupling Nut	For Male Pins
