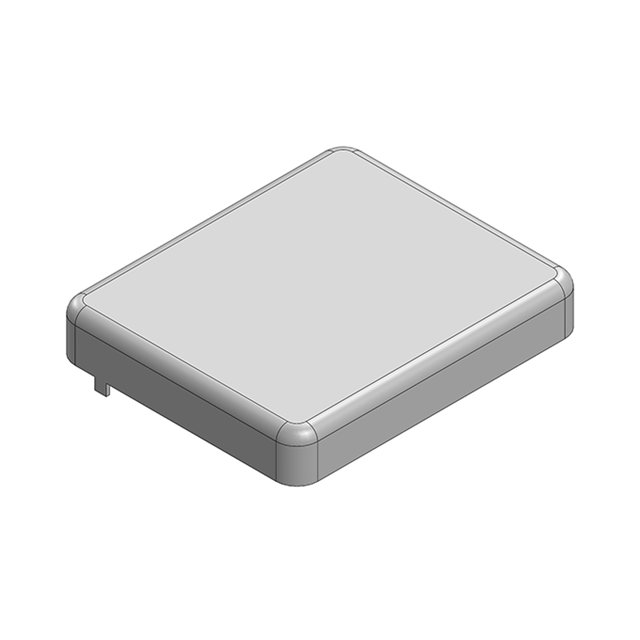

MS250-10S
ActiveMasach Tech Ltd.
RF SHIELD 0.827"X0.984" SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MS250-10S
ActiveMasach Tech Ltd.
RF SHIELD 0.827"X0.984" SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS250-10S |
|---|---|
| Height - Overall [z] | 0.157 in |
| Height - Overall [z] | 4 mm |
| Length - Overall [x] | 25 mm |
| Length - Overall [x] | 0.984 in |
| Mounting Type | Solder |
| Type | Shield, 1-Piece |
| Ventilation | Non-Vented |
| Width - Overall [x] | 21 mm |
| Width - Overall [x] | 0.827 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.29 | |
| 10 | $ 0.94 | |||
| 72 | $ 0.77 | |||
| 144 | $ 0.73 | |||
| 288 | $ 0.70 | |||
| 504 | $ 0.68 | |||
| 1008 | $ 0.66 | |||
| 2520 | $ 0.63 | |||
| 5040 | $ 0.62 | |||
Description
General part information
MS250 Series
RF Shield Shield, 1-Piece 0.827" (21.00mm) X 0.984" (25.00mm) Non-Vented Solder
Documents
Technical documentation and resources
