CONSMA021.062-G
ActiveTE Connectivity AMP Connectors

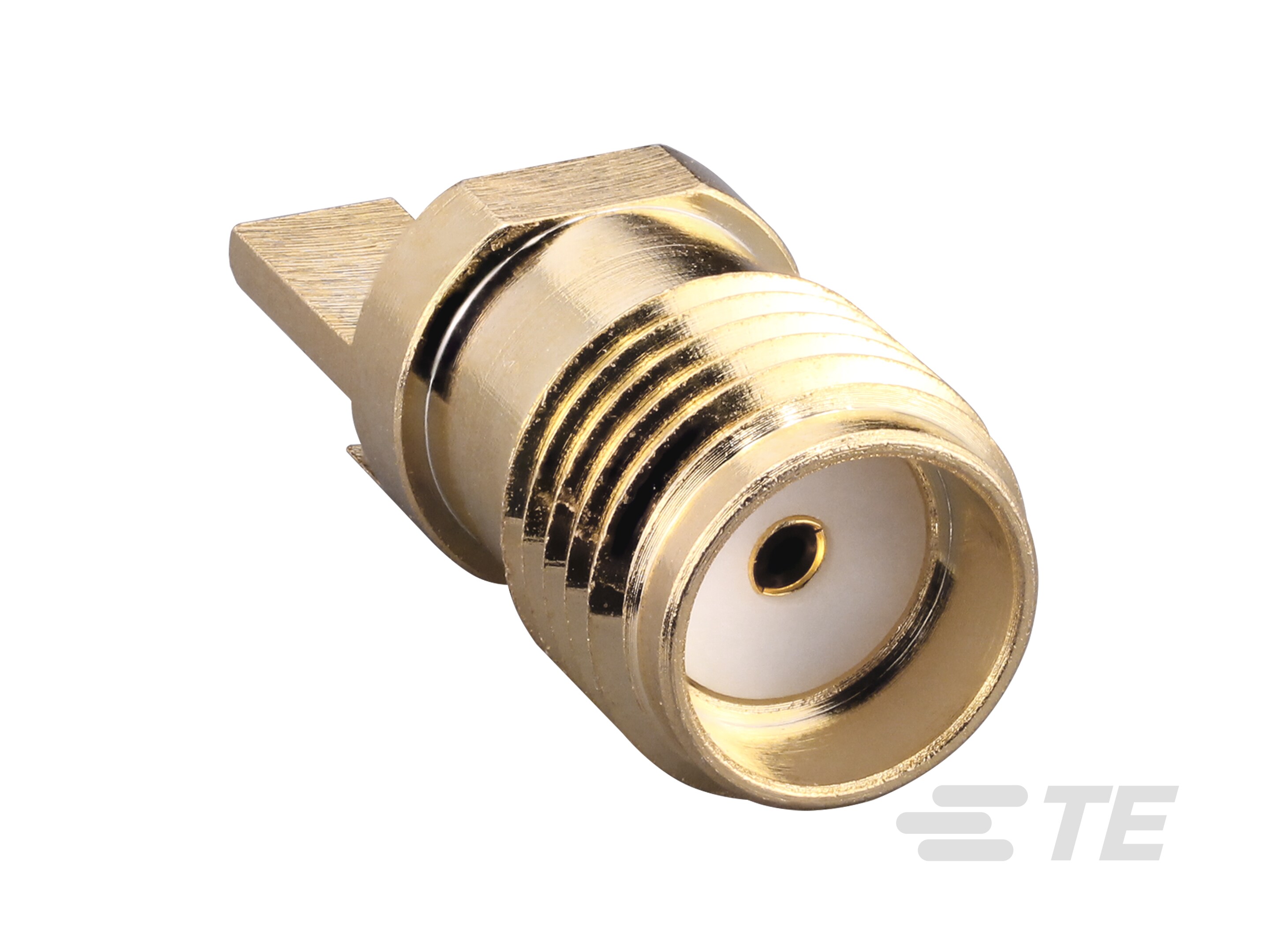

SMA JACK 50 OHM .062 PCB EDGE MOUNT
CONSMA021.062-G
ActiveTE Connectivity AMP Connectors
SMA JACK 50 OHM .062 PCB EDGE MOUNT
Description
General part information
CONSMA021.062-G
SMA Connector, Jack, 50 ohm, Threaded, 0 – 26.5 GHz, 1 Position, Printed Circuit Board, Board Mount, -65 – 165 °C [-85 – 329 °F], Solder, Straight
Technical Specifications
Parameters and characteristics for this part
| Specification | CONSMA021.062-G |
|---|---|
| Center Contact Material | Beryllium Copper |
| Connector Style | SMA |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 26.5 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | End Launch, Board Edge |
| Number of Ports | 1 |
| Shield Termination | Solder |
