Specification	1SNG625018R0000

Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Polyamide (PA6), Nickel Plated, Nylon 6, Brass
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	0.472 in
Outside Cable Diameter (Min)	0.276 in
Panel Hole Size	1.18 in
Thread Diameter	25 mm
Thread Length	0.472 in
Thread Pitch	1.5 mm

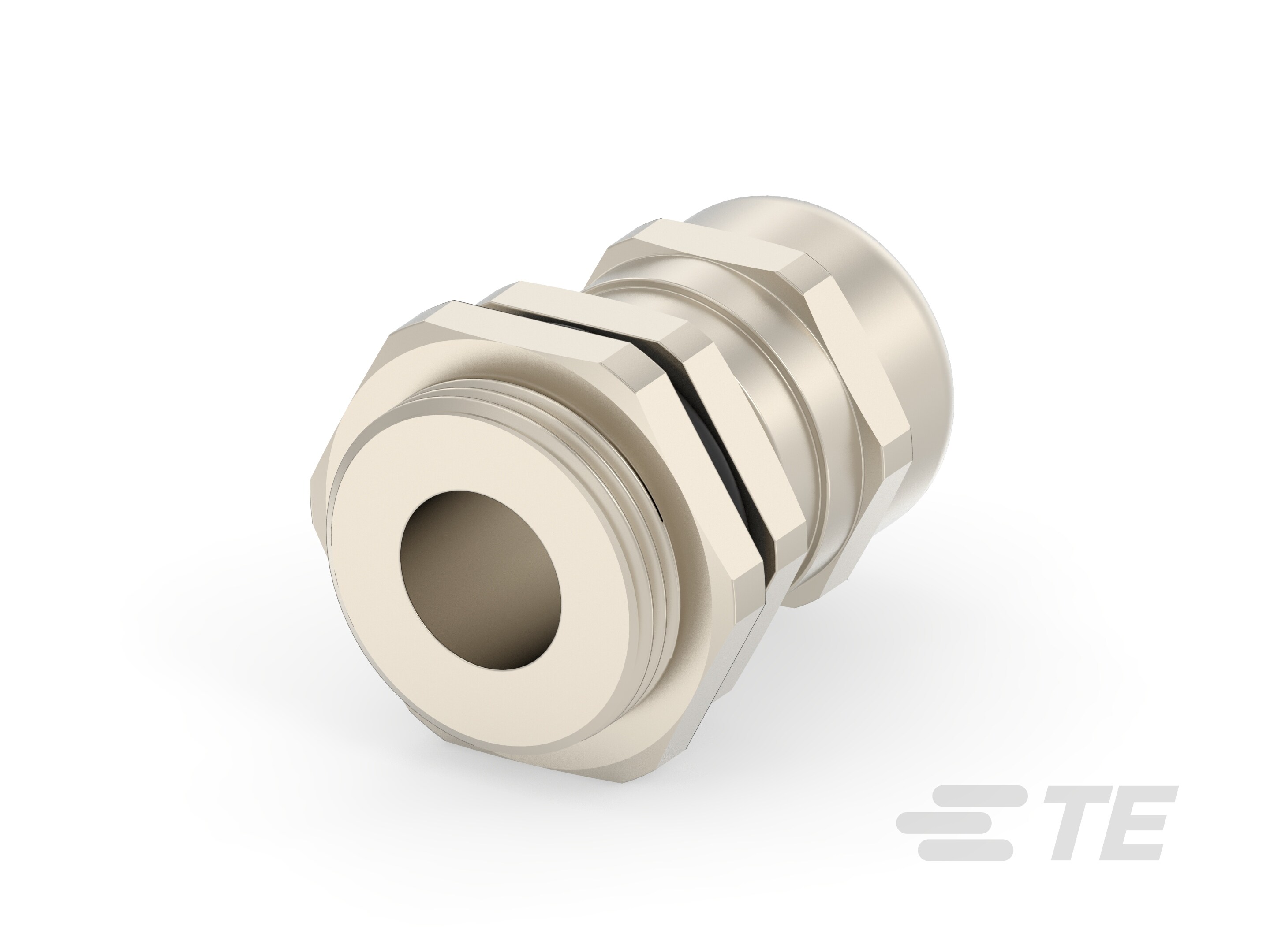

Type	Cable Gland
