2501434-1
ActiveTE Connectivity AMP Connectors

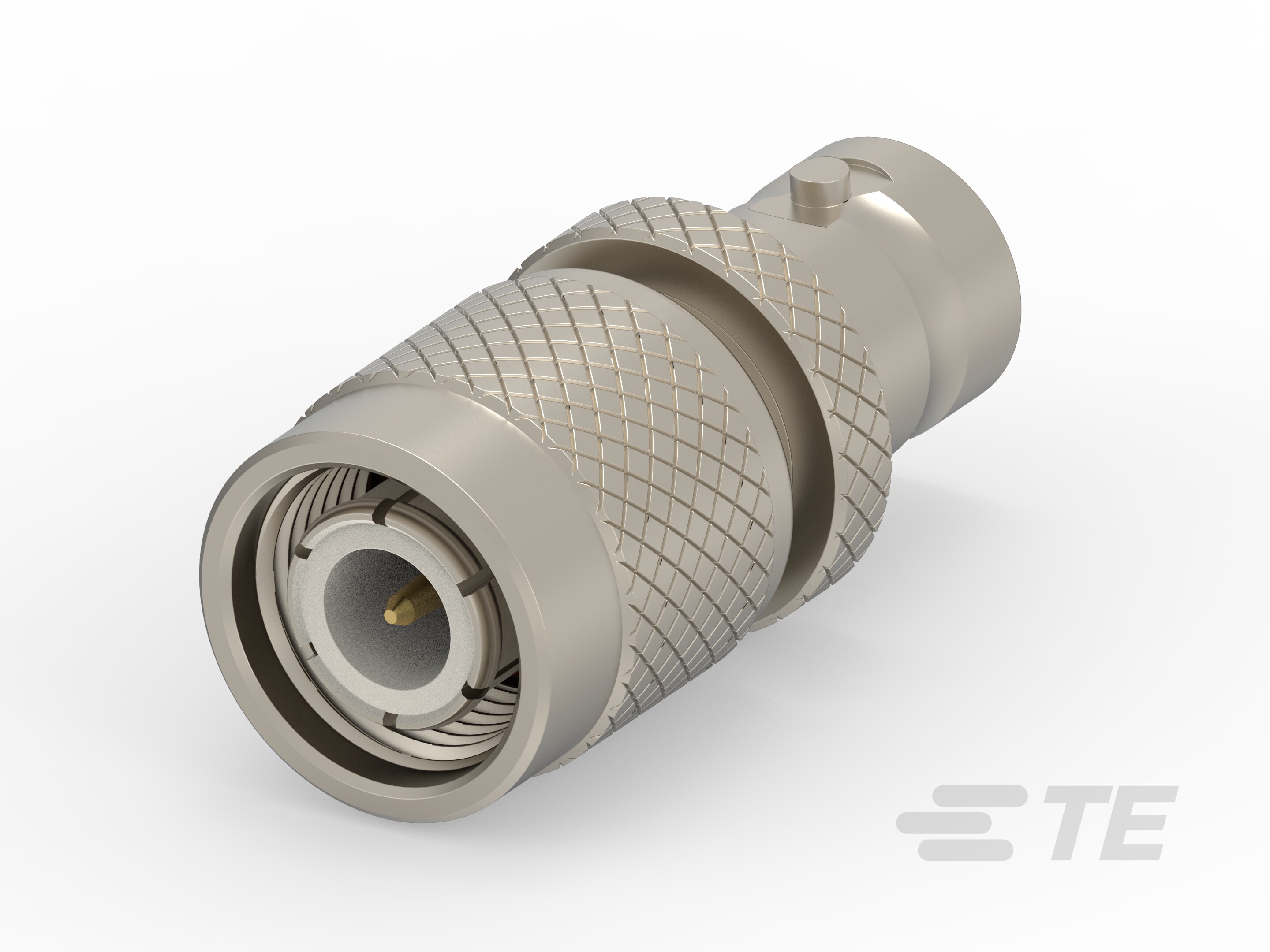

TNC PLUG TO BNC JACK STR 50 OHM
2501434-1
ActiveTE Connectivity AMP Connectors
TNC PLUG TO BNC JACK STR 50 OHM
Description
General part information
2501434-1
In-Series Adapter, Straight, TNC Side A, Plug Side A, BNC Side B, Jack Side B, 2 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 2501434-1 |
|---|---|
| Adapter Series | BNC to TNC |
| Adapter Type | Plug to Jack |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Plug, Male Pin |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | BNC Jack |
| Fastening Type | Threaded, Bayonet Lock |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
