M39006/30-0190
ActiveKYOCERA AVX

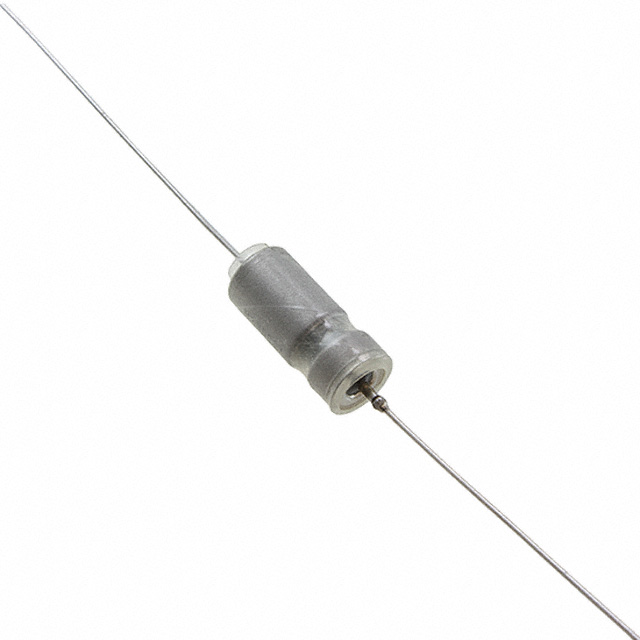

CAP TANT 22UF 20% 100V AXIAL
M39006/30-0190
ActiveKYOCERA AVX
CAP TANT 22UF 20% 100V AXIAL
Description
General part information
M39006/30-0190
22 µF Hermetically Sealed Tantalum Capacitors 100 V Axial 2.26Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | M39006/30-0190 |
|---|---|
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 2.26 Ohm |
| Failure Rate (Percent) | 1 % |
| Failure Rate Rating | M |
| Features | High Reliability |
| Grade | Military |
| Manufacturer Size Code | T2 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Qualification | 30, MIL-PRF-39006 |
| Size / Dimension Diameter | 0.312 in |
| Size / Dimension Length | 0.641 in |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 100 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
