2446053-1
ActiveTE Connectivity AMP Connectors

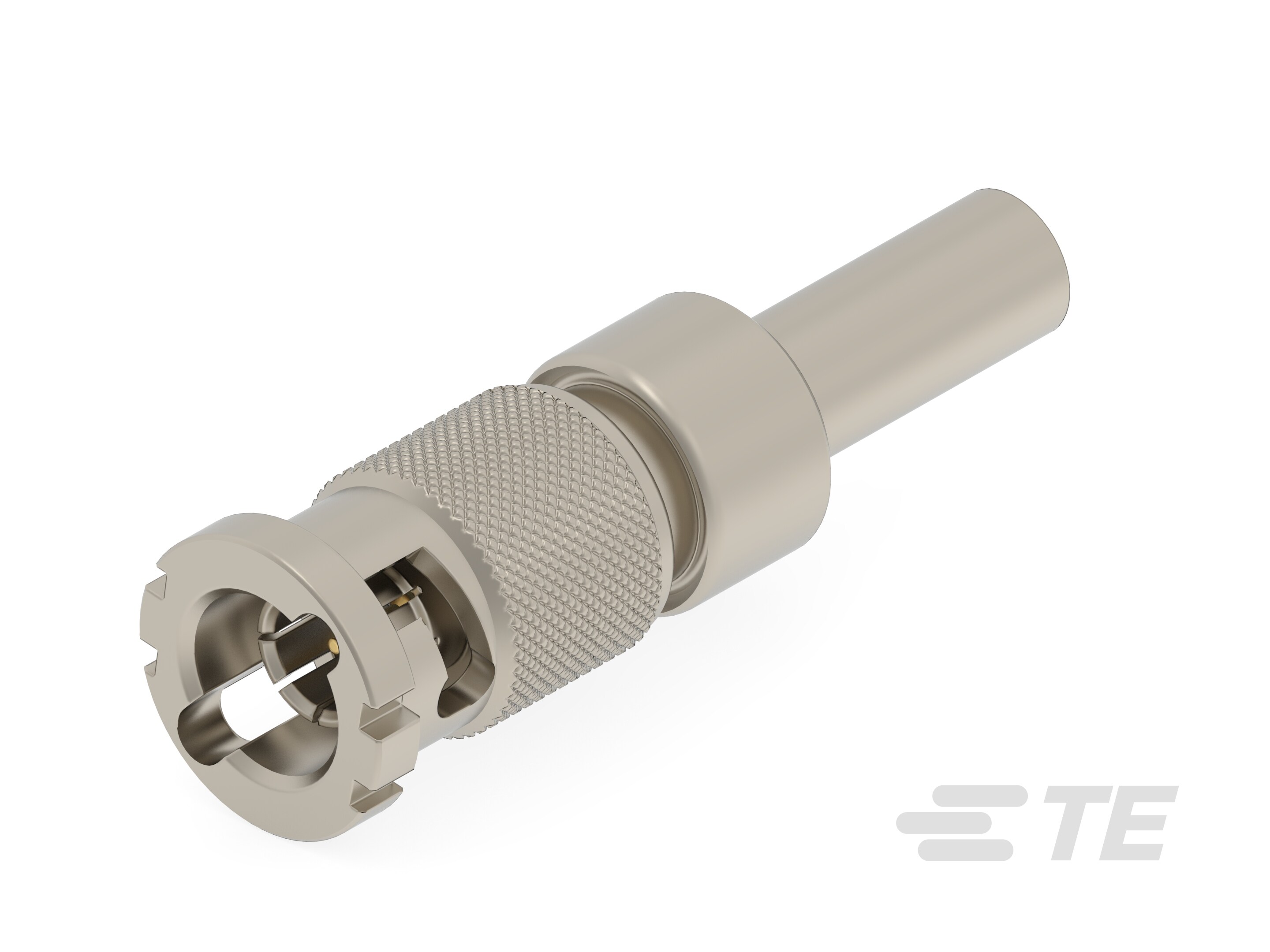

HIGH DENSITY BNC PL,CRIMP,RG179,12GHZ
2446053-1
ActiveTE Connectivity AMP Connectors
HIGH DENSITY BNC PL,CRIMP,RG179,12GHZ
Description
General part information
2446053-1
High Density BNC Connector, Plug, 75 ohm, Bayonet, 0 – 12 GHz, Cable-to-Cable, 1 Position, Wire & Cable, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2446053-1 |
|---|---|
| Cable Group | RG-179 |
| Center Contact Material | Phosphor Bronze |
| Connector Style | HD, BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 12 Gbps |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
