XBP1010-G
ActiveTorex Semiconductor Ltd
TVS DIODE 5VWM 12VC SOD923
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XBP1010-G
ActiveTorex Semiconductor Ltd
TVS DIODE 5VWM 12VC SOD923
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XBP1010-G |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 35 pF |
| Current - Peak Pulse (10/1000µs) | 5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

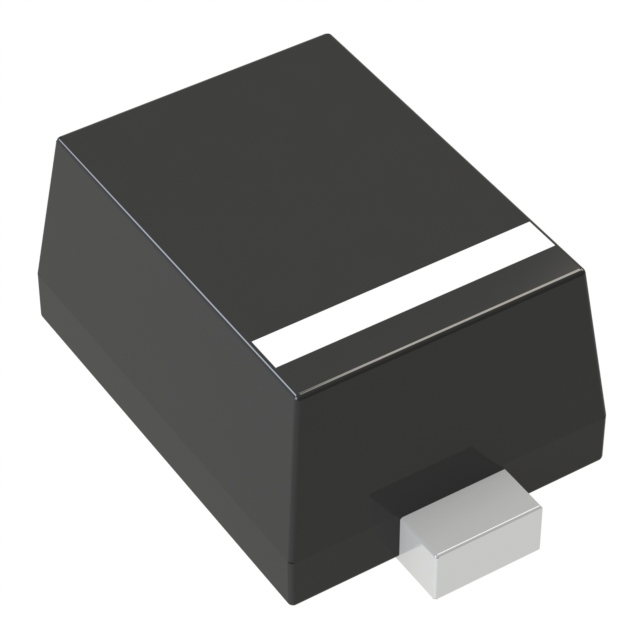

| Package / Case | SOD-923 |
| Power - Peak Pulse | 40 W |
| Power Line Protection | False |
| Supplier Device Package | SOD-923 |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Clamping (Max) @ Ipp | 12 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| Tape & Reel (TR) | 8000 | $ 0.06 | ||
| 16000 | $ 0.05 | |||
| 24000 | $ 0.05 | |||
| 56000 | $ 0.04 | |||
| 200000 | $ 0.04 | |||
Description
General part information
XBP1010 Series
12V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-923
