WS48M-A12RGB24
ActiveLumex Opto/Components Inc.
PBS 19MM SPST 0.1A 48V MOM METAL
WS48M-A12RGB24
ActiveLumex Opto/Components Inc.
PBS 19MM SPST 0.1A 48V MOM METAL
Description
General part information
WS48M-A12RGB24

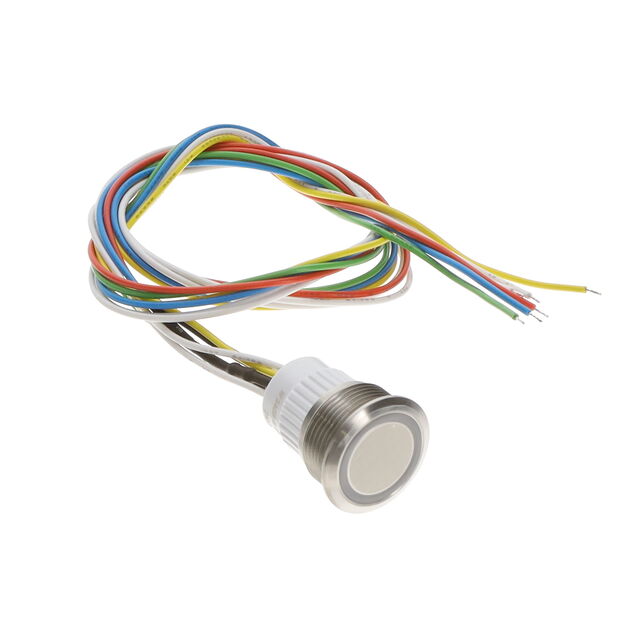

Pushbutton Switch SPST-NO (DM) Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | WS48M-A12RGB24 |
|---|---|
| Actuator Type | Button, Round |
| Circuit | SPST-NO (DM) |
| Color | Blue, Red, Green |
| Color - Actuator/Cap | Silver |
| Current Rating | 10 mA |
| Electrical Life (Cycles) | 100000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 19.15 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-Mom |
| Termination Style | Wire Leads |
| Type | Standard, Illuminated |
| Voltage Rating - DC | 12 V |
