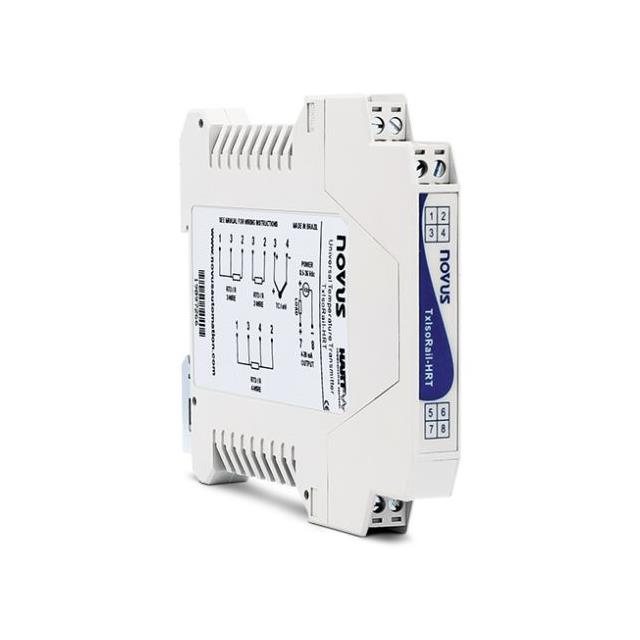

Specification	8808016100

Accuracy - Highest (Lowest)	0.8 %
Features	HART Protocol, Isolated
Mounting Type	DIN Rail
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Type	Analog Current
Resolution	0.25 µA
Sensing Temperature - Local (Celsius) Maximum	1820 °C
Sensing Temperature - Local (Celsius) Minimum	-270 °C
Sensing Temperature - Local (Fahrenheit) Maximum	3308 °F
Sensing Temperature - Local (Fahrenheit) Minimum	-454 °F
Sensing Temperature - Local (Max)	3308 °F
Sensing Temperature - Local (Min)	-454 °F
Sensor Output Voltage (Max)	50 mV
Sensor Output Voltage (Min)	0 V
Sensor Type	K, Pt1000, R, N, T, Thermocouples J, Pt100, NTC, B, E, S
Voltage - Supply (Range 1 Maximum)	20 mA
Voltage - Supply (Range 1 Minimum)	4 mA
Voltage - Supply (Range 2 Maximum)	36 V
Voltage - Supply (Range 2 Minimum)	8.5 V
