JB3030CWT-E-B65EA0000-NZ000001
ActiveCreeLED, Inc.

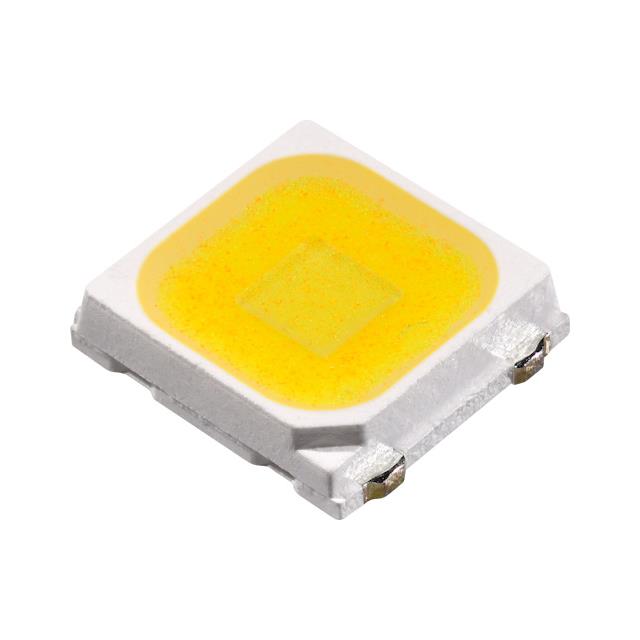

JB3030C 3V E CLASS WHITE LEDS
JB3030CWT-E-B65EA0000-NZ000001
ActiveCreeLED, Inc.
JB3030C 3V E CLASS WHITE LEDS
Description
General part information
JB3030CWT-E-B65EA0000-NZ000001
LED Lighting J White, Cool 6500K 3-Step MacAdam Ellipse 2.66V 55mA 116° 1212 (3030 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | JB3030CWT-E-B65EA0000-NZ000001 |
|---|---|
| CCT (K) | 6500 K |
| CCT Description | 3-Step MacAdam Ellipse |
| Color | Cool, White |
| CRI (Color Rendering Index) | 70 |
| Current - Max | 240 mA |
| Current - Test | 55 mA |
| Flux | 35 lm |
| Flux (Typical) | 33 lm |
| Height - Seated (Max) | 0.033 in |
| Lumens/Watt | 239 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Package Name | 1212 |
| Size / Dimension Length | 0.13 in |
| Size / Dimension Width | 0.118 in |
| Thermal Resistance of Package | 4.5 °C/W |
| Viewing Angle | 116 ° |
| Voltage - Forward (Vf) (Typ) | 2.66 V |
