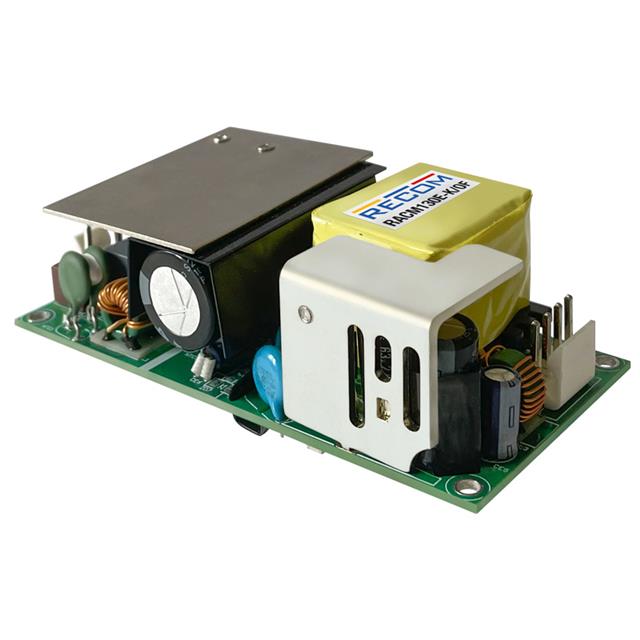

RACM130E-15SK/OF
ActiveRecom Power
AC/DC POWER SUPPLY SINGLE-OUT 15V 8.66A 130W 6-PIN TRAY
RACM130E-15SK/OF
ActiveRecom Power
AC/DC POWER SUPPLY SINGLE-OUT 15V 8.66A 130W 6-PIN TRAY
Description
General part information
RACM130E-15SK/OF
Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RACM130E-15SK/OF |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EAC, CE |
| Current - Output 1 | 8.66 A |
| Efficiency | 88 % |
| Features | PFC, Universal Input, DC Input Capable |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 130 W |
| Size / Dimension Height | 1.26 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 15 V |
