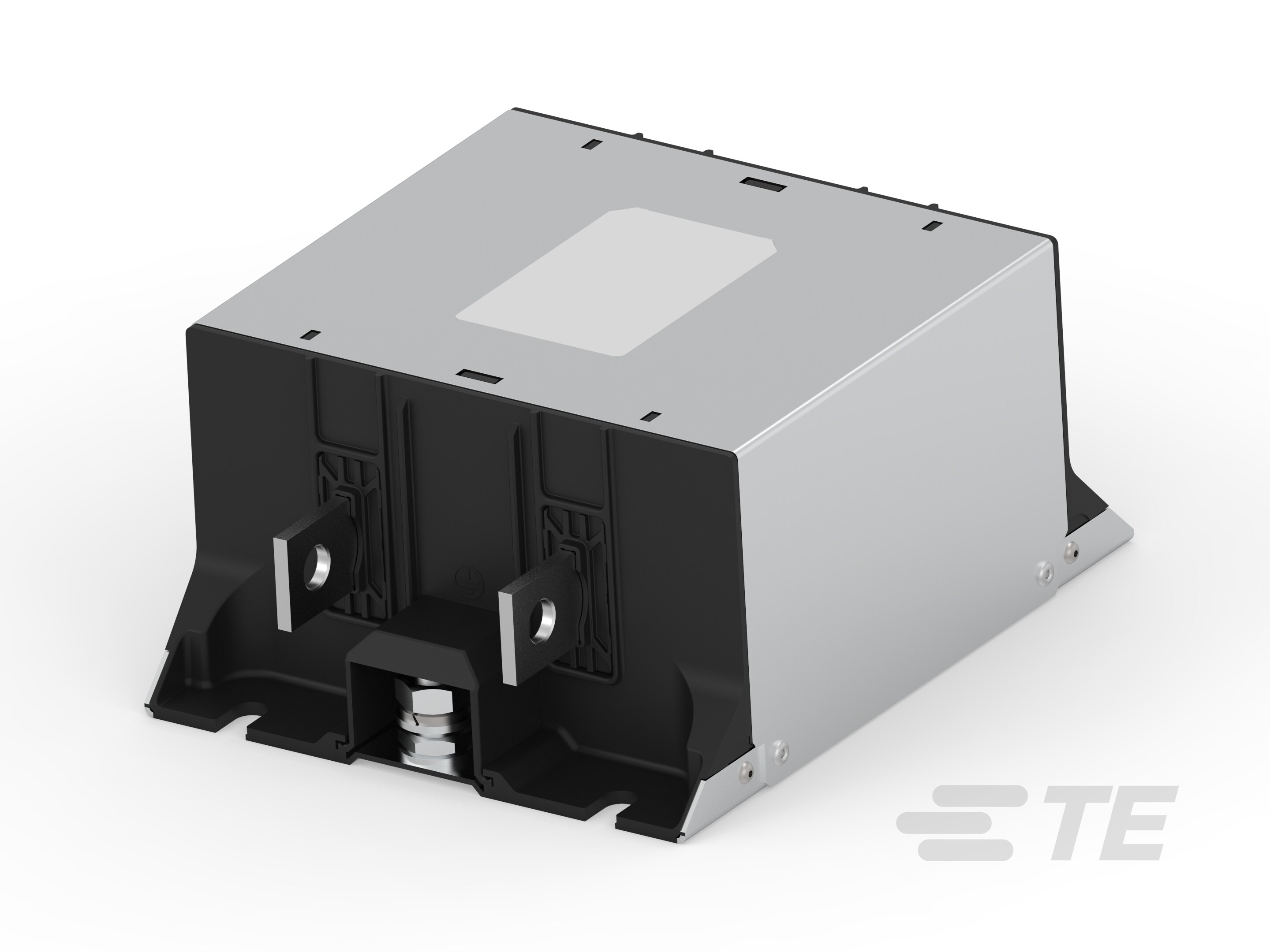

FN2230-300-99-C0000-R90-822716-SF

FN2220-300-99-C0000-R90

Active
TE Connectivity AMP Connectors

LINE FLTR 1000VDC 300A CHASS MNT

Find alt
FN2230-300-99-C0000-R90-822716-SF

FN2220-300-99-C0000-R90

Active
TE Connectivity AMP Connectors

LINE FLTR 1000VDC 300A CHASS MNT

Find alt

Description

General part information

Schaffner FN2220 Series

DC EMC/EMI Line Filter 300 A 1000V (1kV) DC Two Stage Quick Connect, Threaded Post (M10)

Technical Specifications

Parameters and characteristics for this part

SpecificationFN2220-300-99-C0000-R90
ApplicationsGeneral Purpose
Approval AgencyENEC, CSA, UR, UKCA, CE
ConfigurationTwo Stage
Current300 A
Filter TypeDC
Frequency - OperatingDC
Mounting TypeChassis Mount
Operating Temperature (Max)100 °C
Operating Temperature (Min)-40 °C
Termination StyleQuick Connect, Threaded Post (M10)
Voltage - Rated DC1000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
