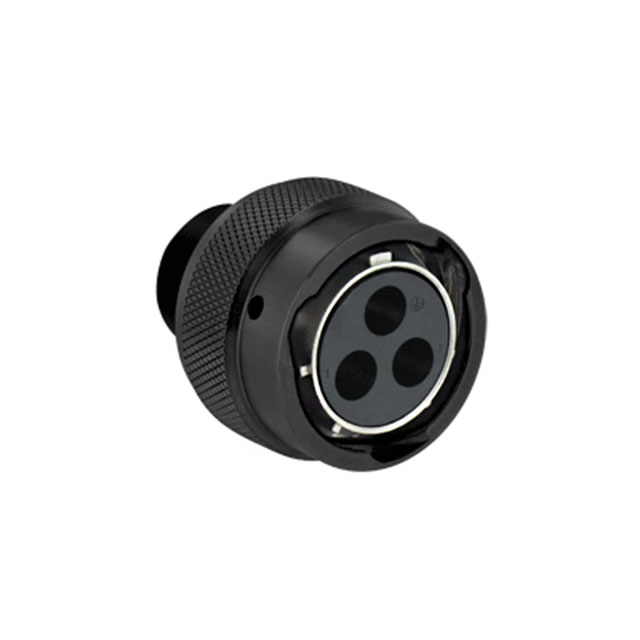

Specification	UT06142G1SH02

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	8
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP67
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Position Types	PE
Shell Finish	Anodized
Shell Material	Halogen Free, Zinc Alloy
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	2 mm
Shielding	Shielded
Type	For Female Sockets

UT061 Series

Part	Connector Type	Shell Material	Shell Size - Insert Length	Shell Size - Insert Width	Fastening Type	Number of Positions	Position Types	Contact Size	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Shell Finish	Mounting Type	Insert Material	Shielding	Type	Features	Orientation	Housing Color	Contact Shape	Material Flammability Rating	Ingress Protection IP Rating	Ingress Protection Description	Note	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
Amphenol Aerospace Operations UT06103SH	Plug Housing	Halogen Free Zinc Alloy	10 mm	3 mm	Bayonet Lock	3	PE	16 S	-40 °C	105 °C	Crimp	Nickel	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Shielded	For Female Sockets	Coupling Nut	N (Normal)	Silver	Circular	UL94 V-0	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included
Amphenol Aerospace Operations UT061412S45N	Plug Housing	Aluminum Alloy	14 mm	12 mm	Threaded	12		16 S	-40 °C	105 °C	Crimp	Nickel	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide		For Female Sockets	Coupling Nut	N (Normal)	Silver	Circular				Contacts Not Included
Amphenol Aerospace Operations UT06147PH	Plug Housing	Halogen Free Zinc Alloy	14 mm	7 mm	Bayonet Lock	7	PE	16 S	-40 °C	105 °C	Crimp	Nickel	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Shielded	For Male Pins	Coupling Nut	N (Normal)	Silver	Circular	UL94 V-0	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included
Amphenol Aerospace Operations UT061492PH02	Plug Housing	Halogen Free Zinc Alloy			Bayonet Lock	12		16 S	-40 °C	105 °C	Crimp	Anodized	Free Hanging (In-Line)	Glass Filled Thermoplastic	Shielded	For Male Pins	Coupling Nut	N (Normal)	Black	Circular	UL94 V-0	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	92	14 S
Amphenol Aerospace Operations UT061412SWH	Plug Housing	Halogen Free Zinc Alloy	14 mm	12 mm	Bayonet Lock	12		16 S	-40 °C	105 °C	Crimp	Nickel	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Shielded	For Female Sockets	Coupling Nut	W	Silver	Circular	UL94 V-0	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included
Amphenol Aerospace Operations UT061412PWH	Plug Housing	Halogen Free Zinc Alloy	14 mm	12 mm	Bayonet Lock	12		16 S	-40 °C	105 °C	Crimp	Nickel	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Shielded	For Male Pins	Coupling Nut	W	Silver	Circular	UL94 V-0	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included
Amphenol Aerospace Operations UT06104PT	Plug Housing	Aluminum Alloy	10 mm	4 mm	Bayonet Lock	4		16 S	-55 °C	125 °C	Crimp	Tin	Free Hanging (In-Line)	Glass Filled Thermoplastic	Shielded	For Male Pins	Coupling Nut	N (Normal)	Silver	Circular	UL94 V-0			Contacts Not Included
Amphenol Aerospace Operations UT06103PH02	Plug Housing	Halogen Free Zinc Alloy	10 mm	3 mm	Bayonet Lock	3	PE	16 S	-40 °C	105 °C	Crimp	Anodized	Free Hanging (In-Line)	Glass Filled Thermoplastic	Shielded	For Male Pins	Coupling Nut	N (Normal)	Black	Circular	UL94 V-0	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included
Amphenol Aerospace Operations UT06128SH02	Plug Housing	Halogen Free Zinc Alloy	12 mm	8 mm	Bayonet Lock	8		16 S	-40 °C	105 °C	Crimp	Anodized	Free Hanging (In-Line)	Glass Filled Thermoplastic	Shielded	For Female Sockets	Coupling Nut	N (Normal)	Black	Circular	UL94 V-0	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included
Amphenol Aerospace Operations UT061823SZH	Plug Housing	Halogen Free Zinc Alloy			Bayonet Lock	23		16 S	-40 °C	105 °C	Crimp	Nickel	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	Shielded	For Female Sockets	Coupling Nut	Z	Silver	Circular	UL94 V-0	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	23	18
