QGS6015RS
ActivePulse Electronics
MDL 5G DUAL PORT 4PAIR POE 60W
QGS6015RS
ActivePulse Electronics
MDL 5G DUAL PORT 4PAIR POE 60W
Description
General part information

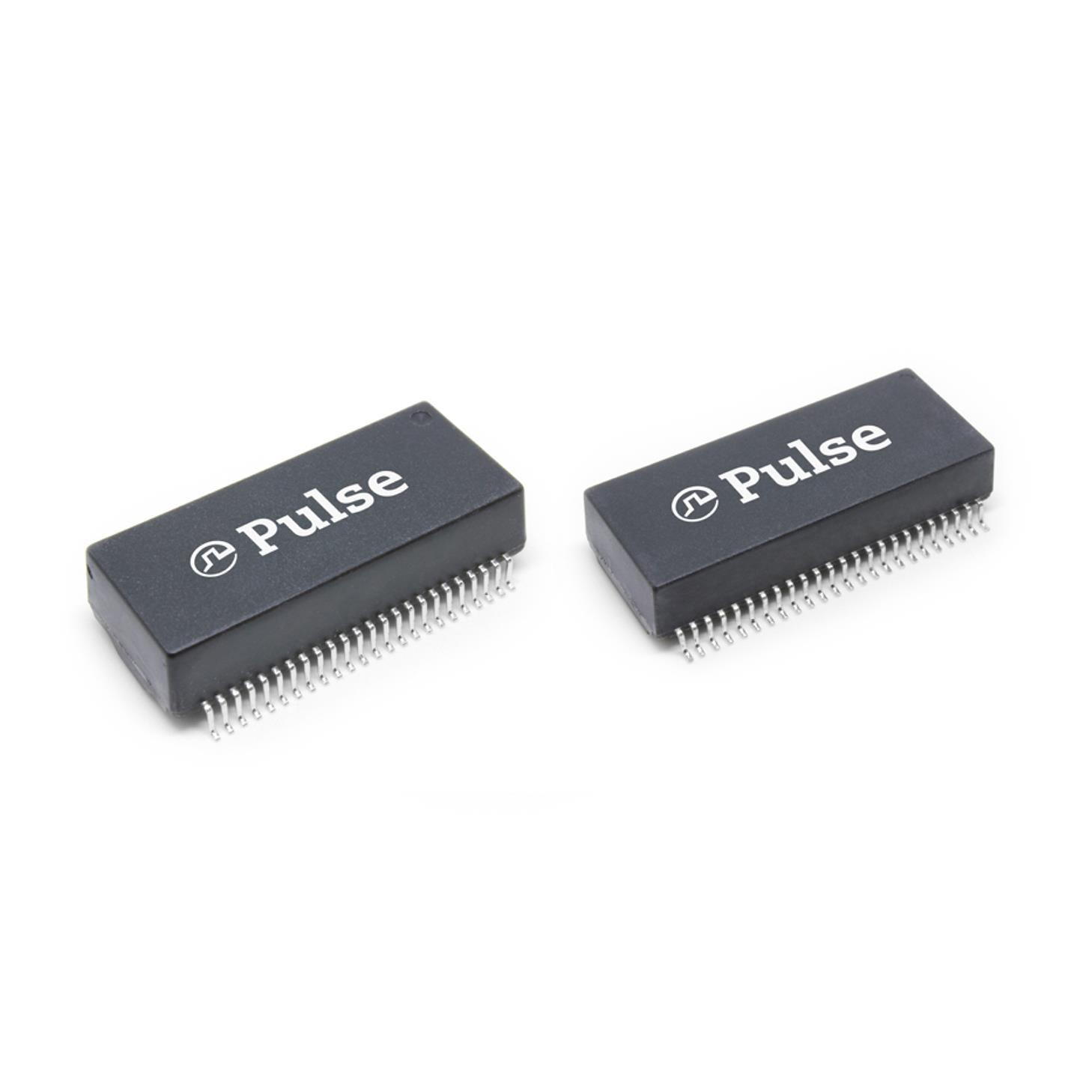

QGS6015RS
180µH LAN 2.5/5G Base-T, Power over Ethernet (PoE) Pulse Transformer 1:1CT Transmitter, 1:1CT Receiver Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | QGS6015RS |
|---|---|
| Height - Seated (Max) | 0.287 in |
| Inductance | 180 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 1.291 in |
| Size / Dimension Width | 0.543 in |
| Transformer Type | LAN 2.5/5G Base-T, Power over Ethernet (PoE) |
| Turns Ratio - Primary (Receiver) | 1 CT |
| Turns Ratio - Primary (Transmitter) | 1 CT |
| Turns Ratio - Secondary (Receiver) | 1 |
| Turns Ratio - Secondary (Transmitter) | 1 CT |
| Turns Ratio Mode | Receiver, Transmitter |
