6450160-3
ActiveTE Connectivity AMP Connectors
CONN BOARD TO BOARD HDR 2POWER/24SIGNAL POS 6.35MM/2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TRAY
6450160-3
ActiveTE Connectivity AMP Connectors
CONN BOARD TO BOARD HDR 2POWER/24SIGNAL POS 6.35MM/2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TRAY
Description
General part information
6450160-3

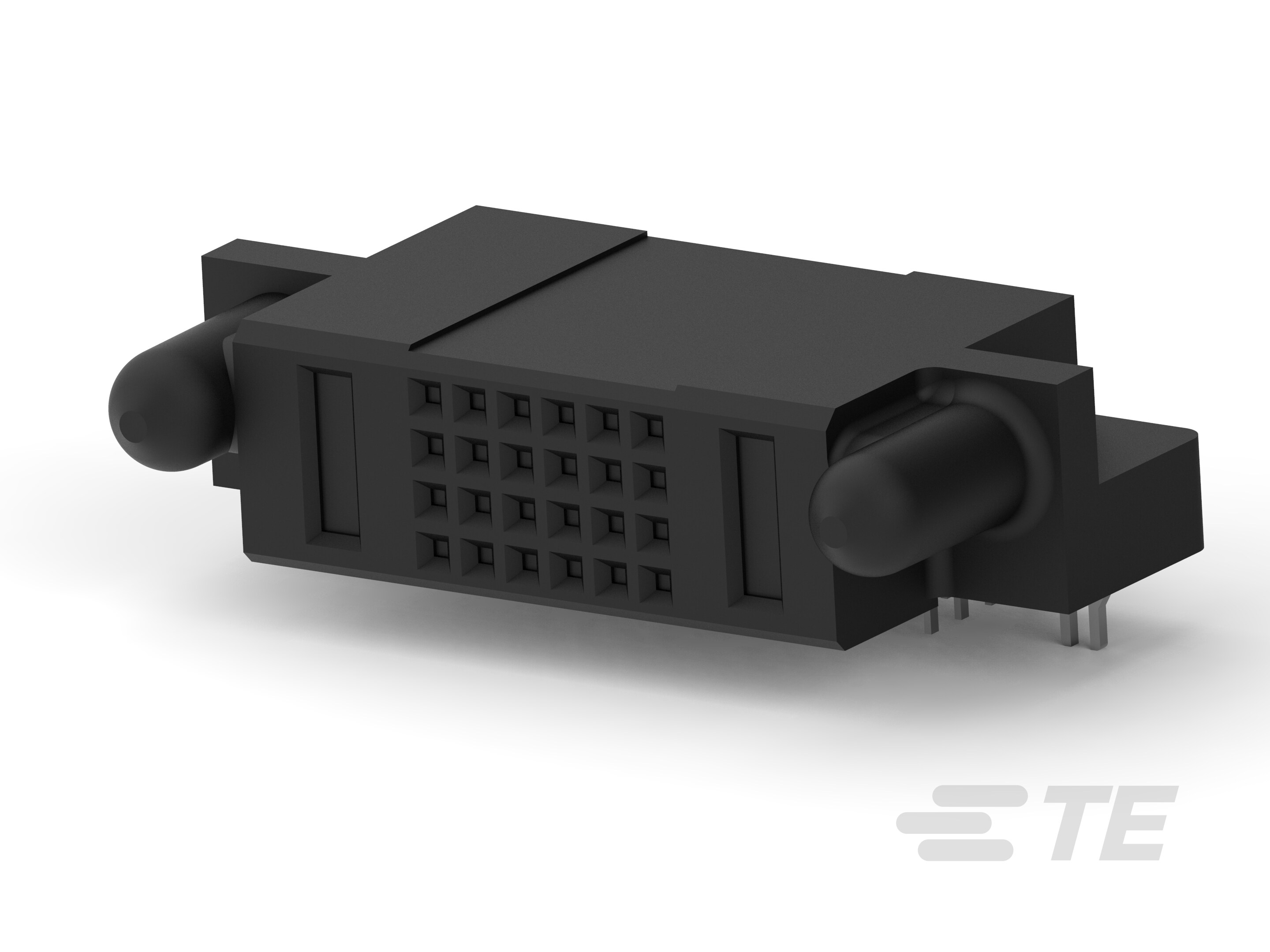

PCB Mount Receptacle, Right Angle, Board-to-Board, 26 Position, 2.54 mm [.1 in] Centerline, Fully Shrouded, Gold (Au), Through Hole - Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 6450160-3 |
|---|---|
| Color | Black |
| Connector Style | Multi-Beam |
| Connector Type | Receptacle, Blade Sockets, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Guide Pin, Board Lock |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Pitch | 0.1 in |
| Power Contacts (Typical) | 2 |
| Signal Contacts (Typical) | 24 |
| Termination | Solder |
