SFJEL2K00102MC0
ObsoleteKnowles Syfer

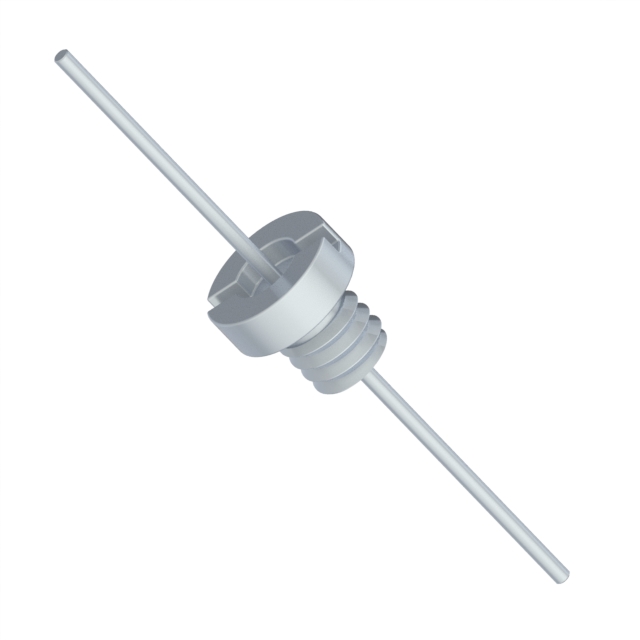

CAP FEEDTHRU 1000PF 2KV AXIAL
SFJEL2K00102MC0
ObsoleteKnowles Syfer
CAP FEEDTHRU 1000PF 2KV AXIAL
Description
General part information
SFJEL2K00102MC0
1000 pF Feed Through Capacitor 2000V (2kV) 15 A Axial, Bushing
Technical Specifications
Parameters and characteristics for this part
| Specification | SFJEL2K00102MC0 |
|---|---|
| Capacitance | 1000 pF |
| Current | 15 A |
| Insertion Loss | 25 dB |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Bushing, Axial |
| Size / Dimension Diameter | 0.386 in |
| Size / Dimension Length | 0.37 in |
| Temperature Coefficient | NP0, C0G |
| Thread Pitch (TPI) | 28 TPI |
| Thread Size (Nominal) | 0.25 in |
| Tolerance | 20 % |
| Type | Feed Through |
| Voltage - Rated | 2000 VAC |
