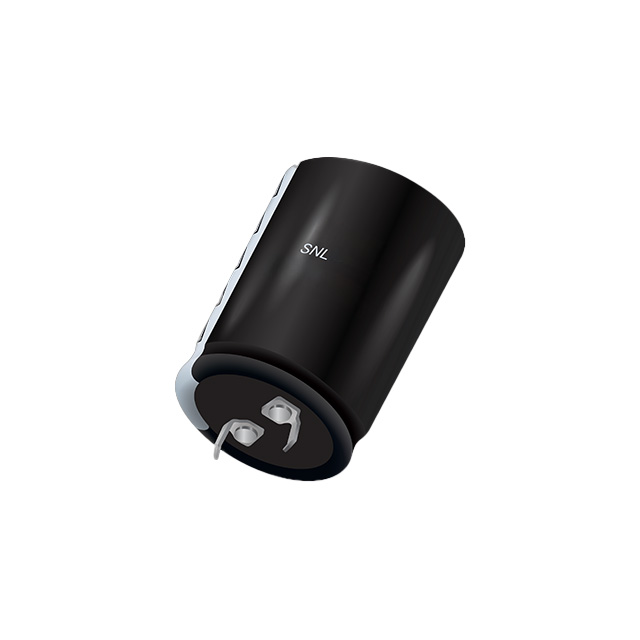

Specification	SNLG25680M400BK

Applications	General Purpose
Capacitance	68 µF
ESR (Equivalent Series Resistance)	2.926 Ohm
Height - Seated (Max)	1.063 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	500 mA, 715 mA
Size / Dimension Diameter	0.866 in
Tolerance	20 %
Voltage - Rated	400 V
