Description
General part information

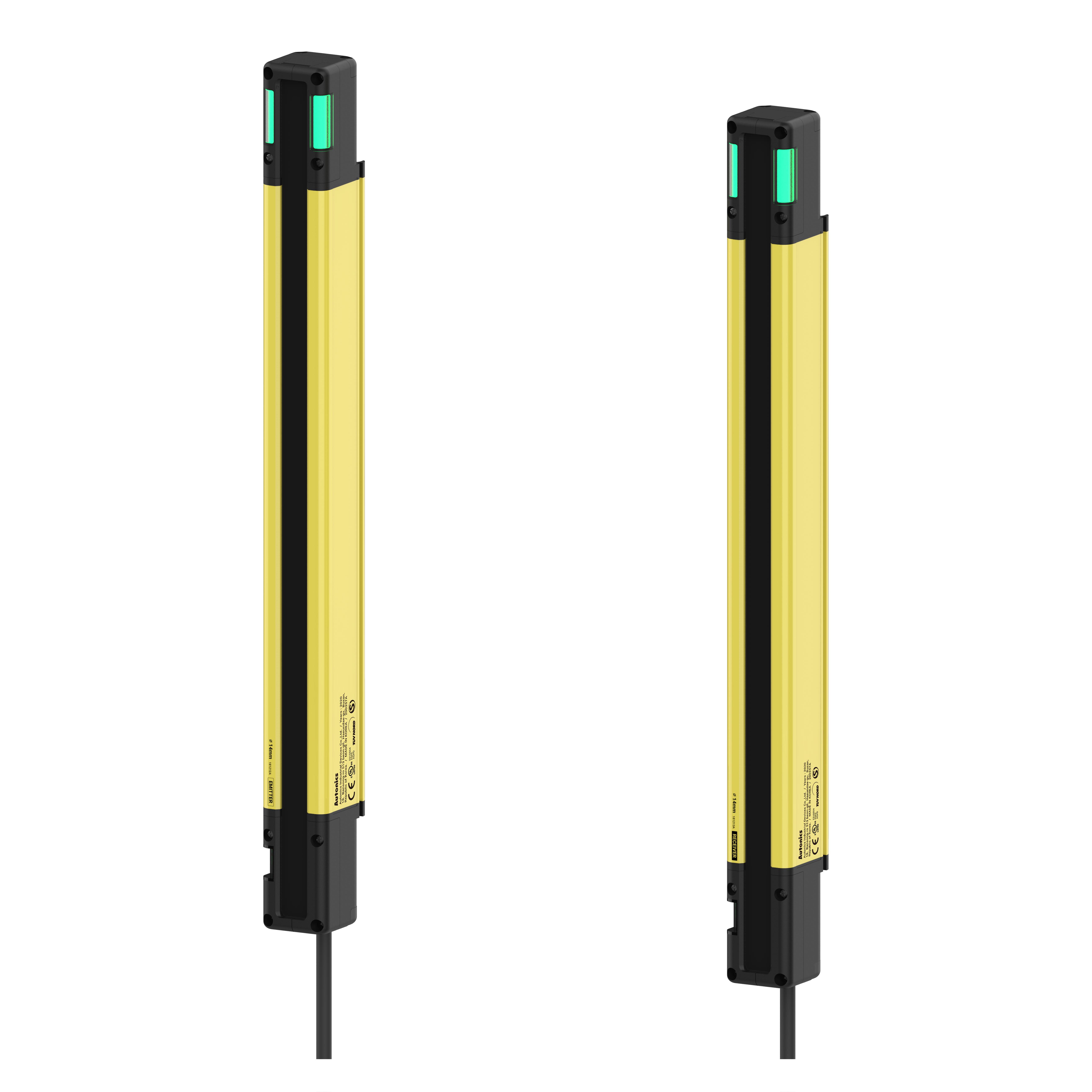

SFL14-87
Light Curtain 14mm Finger Muting Function
Technical Specifications
Parameters and characteristics for this part
| Specification | SFL14-87 |
|---|---|
| Beam Pitch | 9 mm |
| Detection Capability | 14 mm |
| Features | Muting Function |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Number of Beams | 87 |
| Operating Range (Max) | 10 m |
| Operating Range (Min) | 0.2 m |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -30 °C |
| Protection | Finger |
| Protective Height | 792 mm |
| Voltage - Supply | 24 VDC |
| Weight | 5.7 lbs |
