Specification	1825142-5

Actuator Length	7.62 mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating	0.4 VA
Features	Process Sealed
Illumination	Non-Illuminated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Vertical, Right Angle, Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

ALCOSWITCH Gemini AE Series

Part	Electrical Life (Cycles)	Actuator Material	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection Description	Ingress Protection IP Rating	Illumination	Features	Actuator Type	Switch Function	Circuit	Mounting Type	Actuator Length	Voltage Rating - AC	Termination Style	Bushing Thread	Voltage Rating - DC

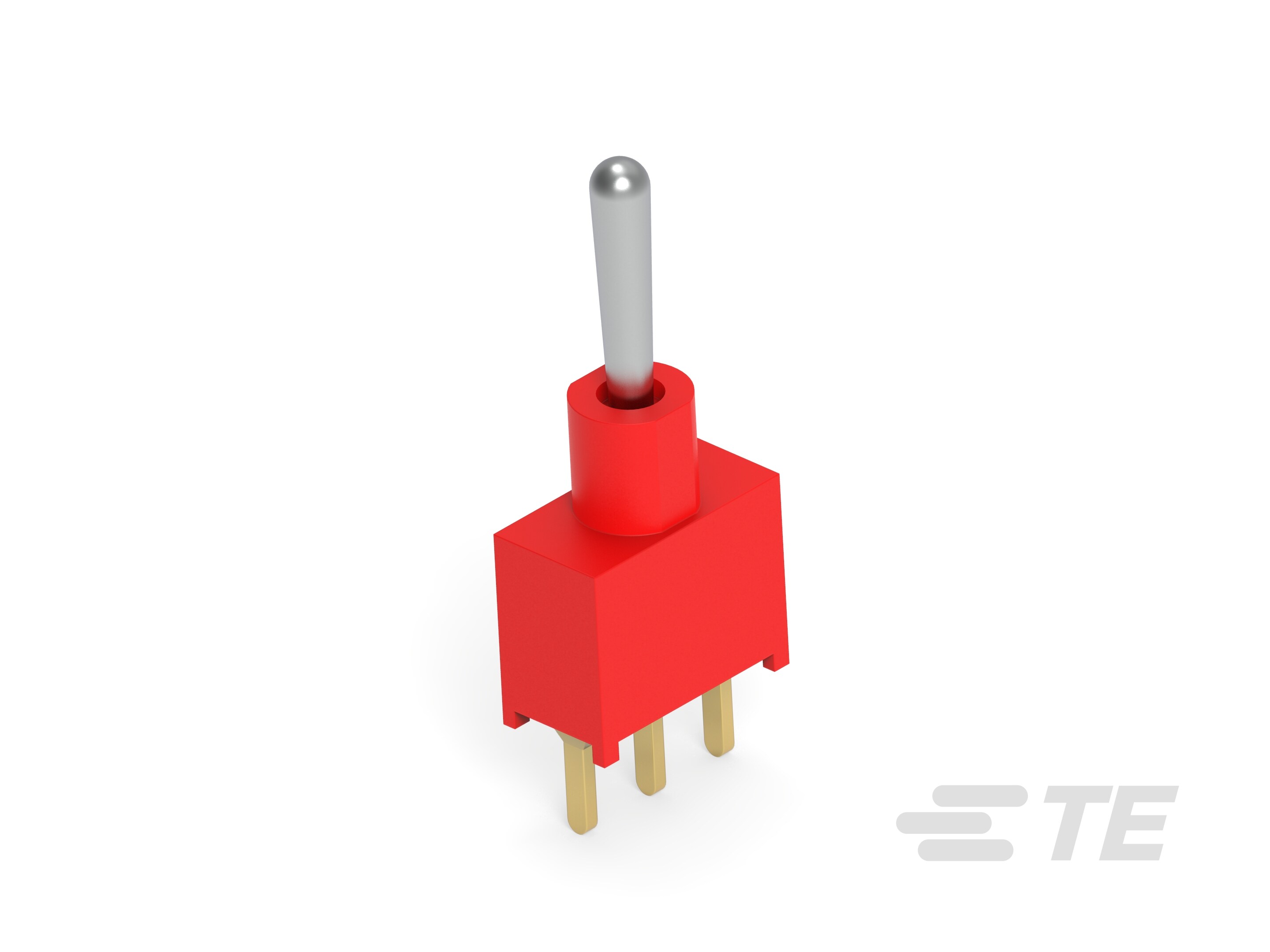

TE Connectivity AMP Connectors 3-1825142-1	6000 Cycles	Brass Nickel Plated	5 A	85 °C	-30 °C	Dust Tight Waterproof	IP67	Non-Illuminated	Process Sealed	Standard Round	On-Off-On	SPDT	Through Hole	0.5 in	120 V	PC Pin	Unthreaded	28 V

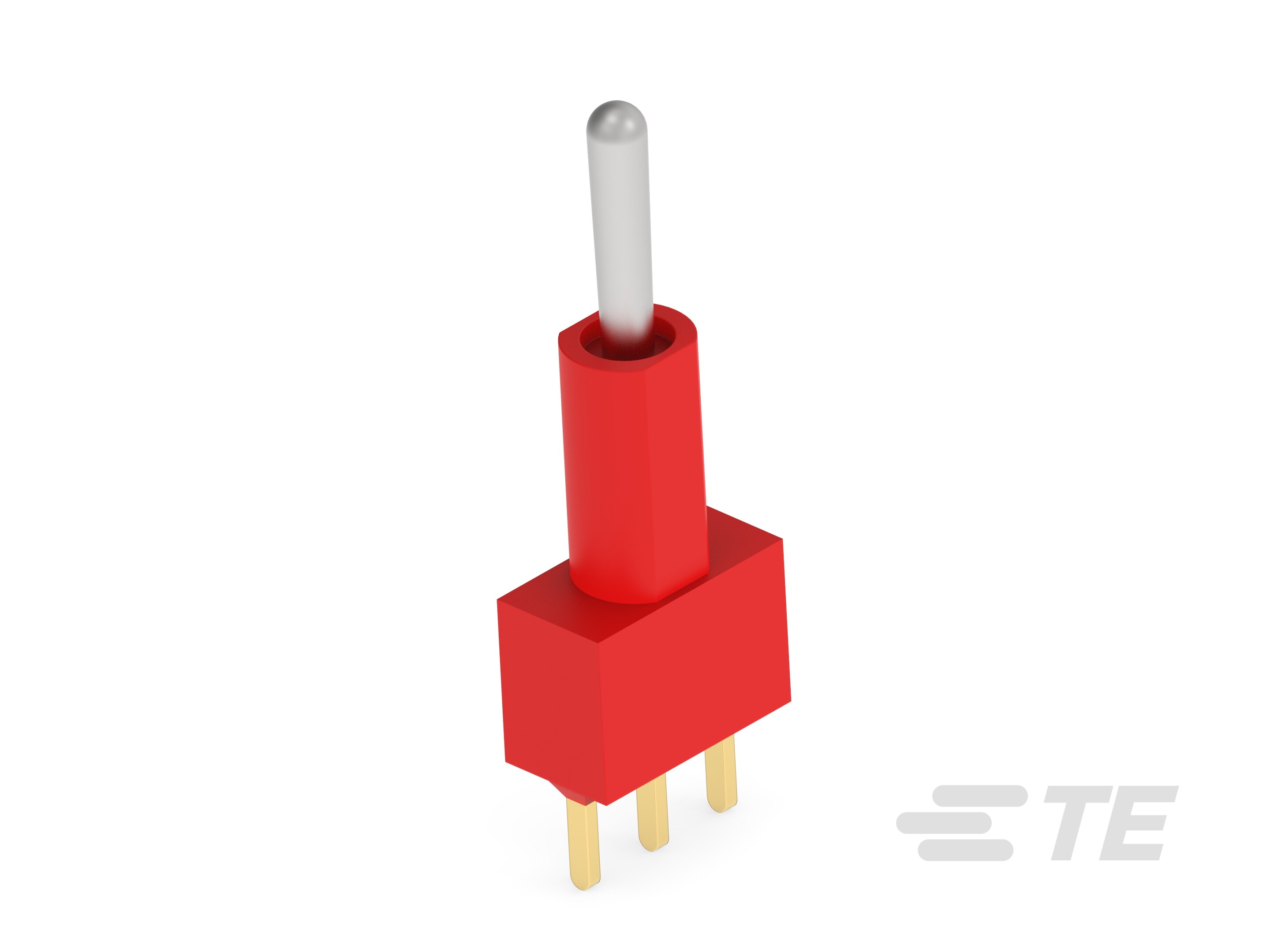

TE Connectivity AMP Connectors 3-1825142-0			0.4 VA	85 °C	-30 °C	Dust Tight Waterproof	IP67	Non-Illuminated	Process Sealed	Standard Round	On-Off-On	SPDT	Through Hole	0.5 in	20 V	PC Pin	Unthreaded	20 V

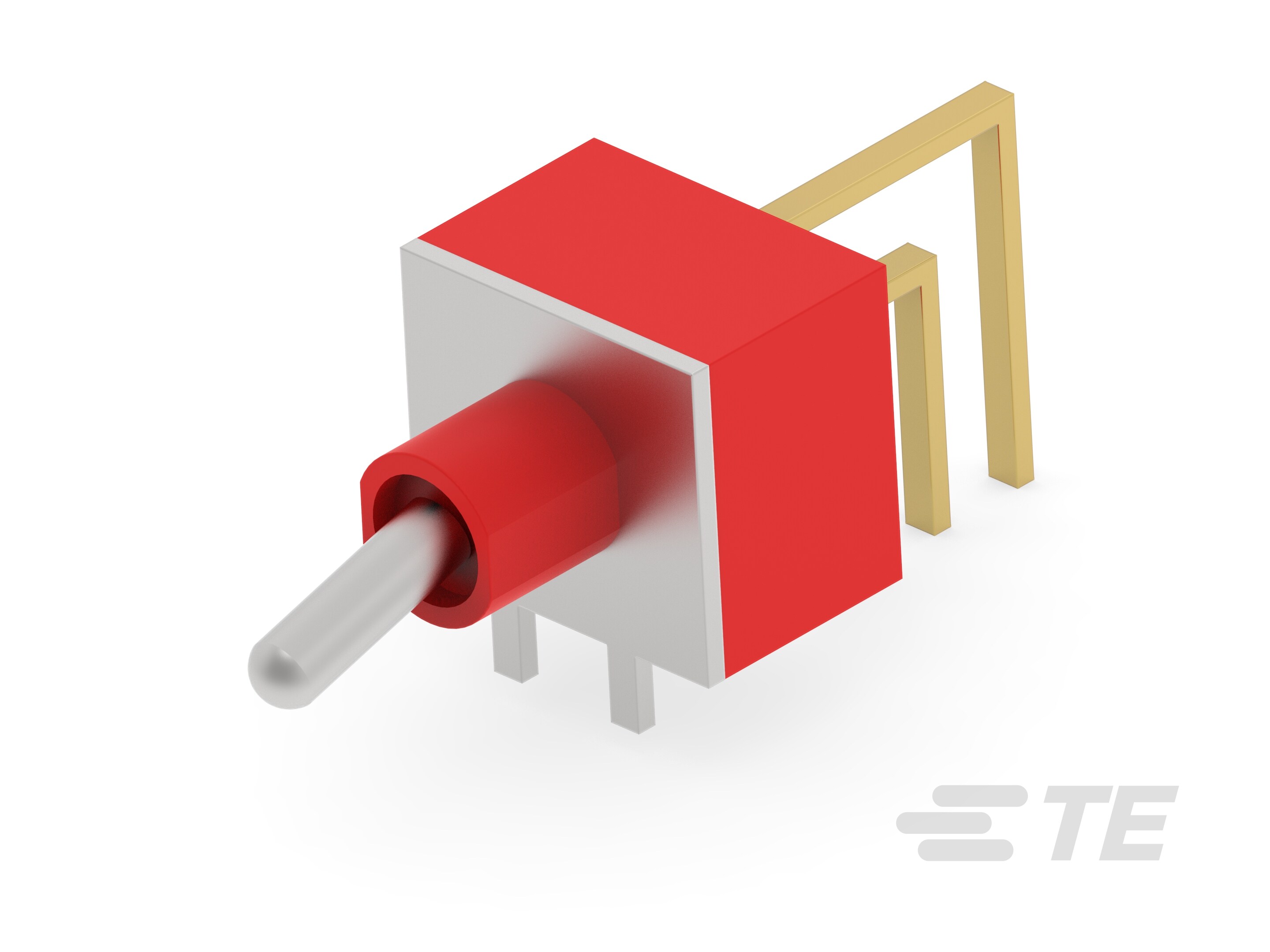

TE Connectivity AMP Connectors 1825143-3			0.4 VA	85 °C	-30 °C	Dust Tight Waterproof	IP67	Non-Illuminated	Process Sealed	Standard Round	On-On	DPDT	Right Angle Through Hole Vertical	7.62 mm	20 V	PC Pin	Unthreaded	20 V
TE Connectivity AMP Connectors 1-1825142-5
TE Connectivity AMP Connectors 1-1825143-0			5 A	85 °C	-30 °C			Non-Illuminated		Standard Round	On-On	DPDT	Through Hole	0.5 in	120 V	PC Pin	Unthreaded	28 V
TE Connectivity AMP Connectors 1-1825142-5	6000 Cycles	Brass Nickel Plated	0.4 VA	85 °C	-30 °C	Dust Tight Waterproof	IP67	Non-Illuminated	Process Sealed	Standard Round	On-On	SPDT	Right Angle Through Hole	0.5 in	20 V	PC Pin	Unthreaded	20 V
TE Connectivity AMP Connectors 1-1825142-8	6000 Cycles	Brass Nickel Plated	0.4 VA	85 °C	-30 °C	Dust Tight Waterproof	IP67	Non-Illuminated	Process Sealed	Standard Round	On-On	SPDT	Right Angle Through Hole Vertical	0.5 in	20 V	PC Pin	Unthreaded	20 V
TE Connectivity AMP Connectors 2-1825142-5	6000 Cycles	Brass Nickel Plated	0.4 VA	85 °C	-30 °C	Dust Tight Waterproof	IP67	Non-Illuminated	Process Sealed	Standard Round	On-Off-On	SPDT	Right Angle Through Hole Vertical	7.62 mm	20 V	PC Pin	Unthreaded	20 V

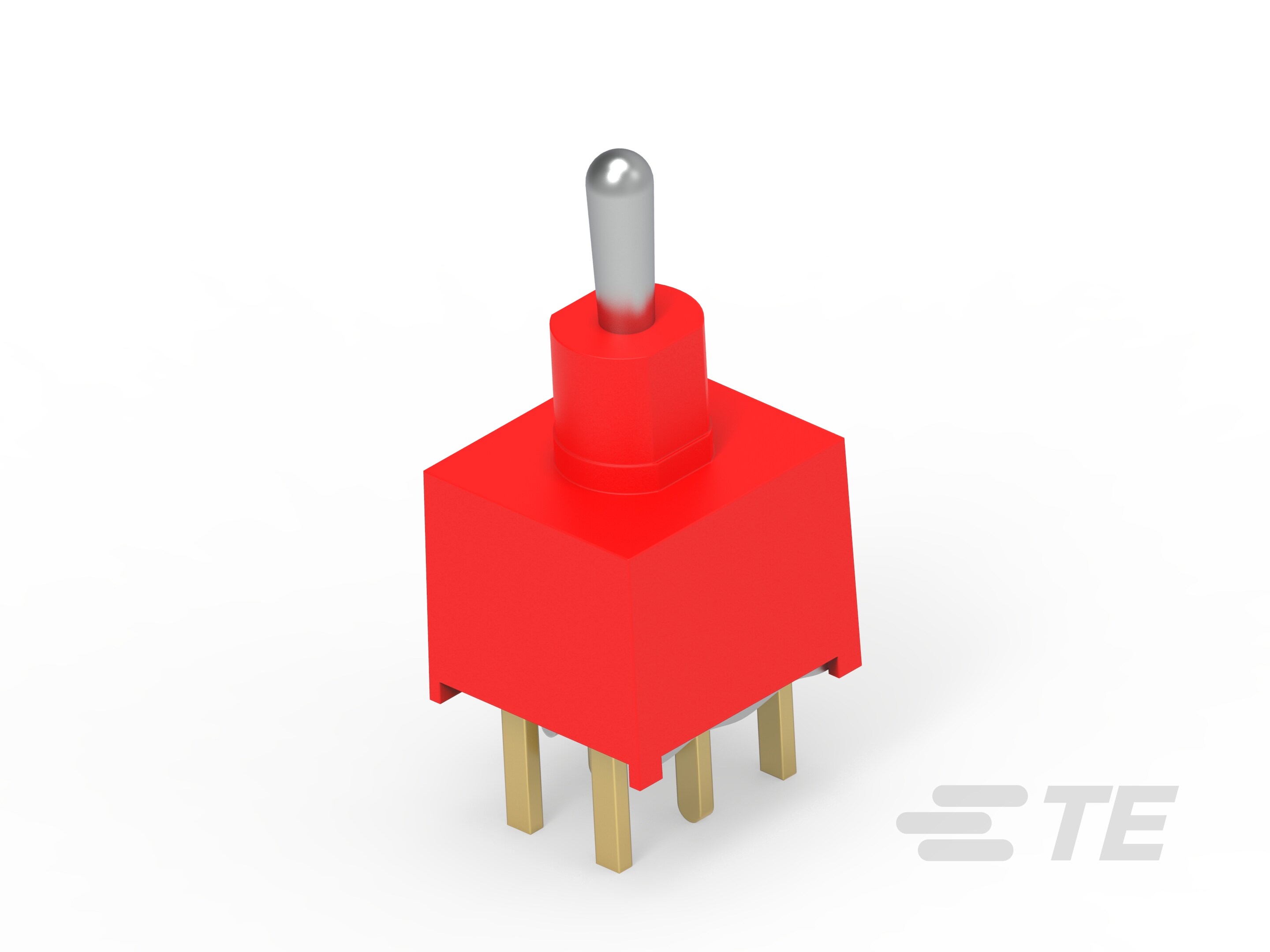

TE Connectivity AMP Connectors 2-1825143-6	6000 Cycles	Brass Nickel Plated	0.4 VA	85 °C	-30 °C	Dust Tight Waterproof	IP67	Non-Illuminated	Jumper needed to achieve triple throw	Standard Round	On-On-On	SP3T	Through Hole	7.62 mm	20 V	PC Pin	Unthreaded	20 V
TE Connectivity AMP Connectors 2-1825142-4	6000 Cycles	Brass Nickel Plated	0.4 VA	85 °C	-30 °C	Dust Tight Waterproof	IP67	Non-Illuminated	Process Sealed	Standard Round	On-Off-On	SPDT	Right Angle Through Hole	7.62 mm	20 V	PC Pin	Unthreaded	20 V
