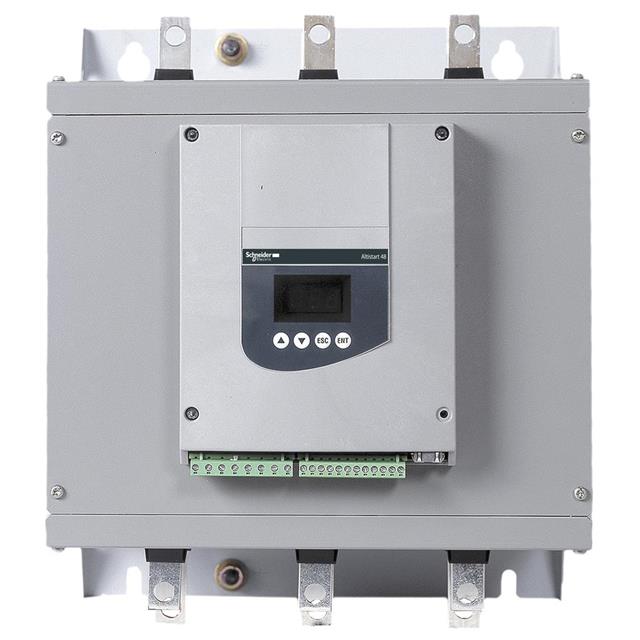

ATS48C32Y
ObsoleteSCHNEIDER ELECTRIC
SOFT STARTER FOR ASYNCHRONOUS MO
ATS48C32Y
ObsoleteSCHNEIDER ELECTRIC
SOFT STARTER FOR ASYNCHRONOUS MO
Description
General part information
ATS48C32Y
Soft Start / Stop Supply 302A 208 ~ 690V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS48C32Y |
|---|---|
| Control / Drive Type | Soft Start, Stop |
| Current - Output | 302 A |
| Interface | Serial, RS-485 |
| Motor Type | AC Motor |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Type | Module |
| Voltage - Load (Max) | 690 V |
| Voltage - Load (Min) | 208 V |
| Wattage - Load | 315000 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
