Description
General part information

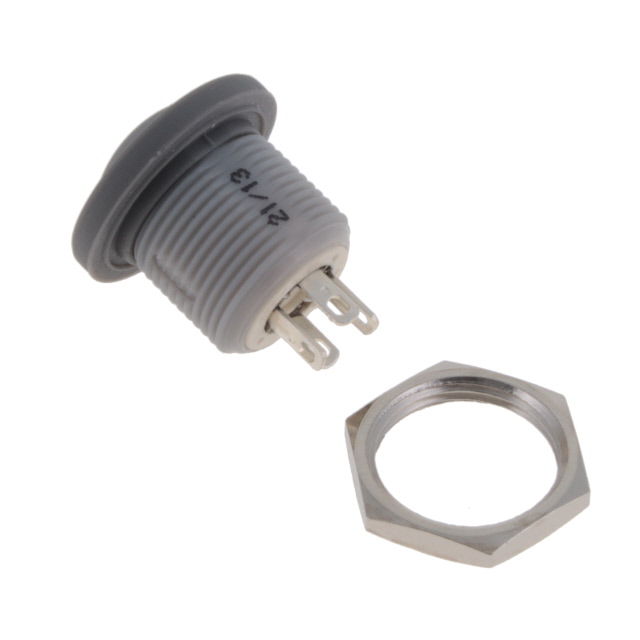

IXP5S14M
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | IXP5S14M |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round, Mushroom |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Gray |
| Current Rating | 2 A |
| Electrical Life (Cycles) | 100000 Cycles |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP69K |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 11.9 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - DC | 28 V |
