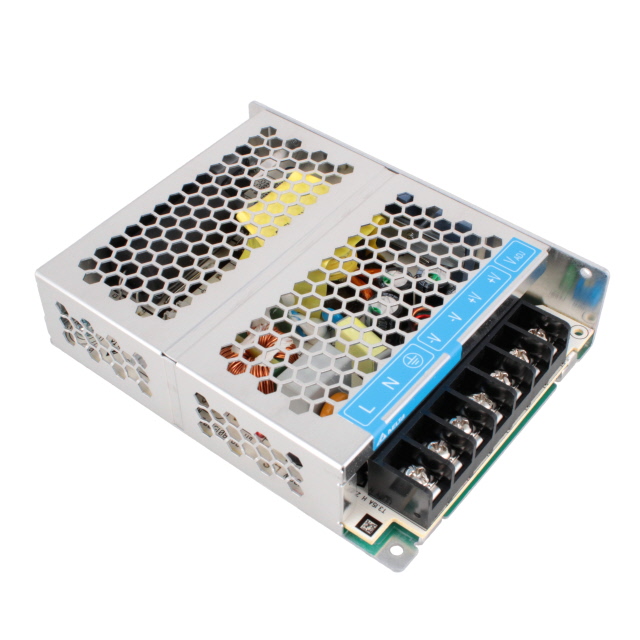

PMH-12V100WCLS

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 102W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 102W

Technical Specifications

Parameters and characteristics for this part

Specification	PMH-12V100WCLS

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, CE, EAC, SIQ, cURus
Efficiency	85 %
Features	Universal Input, IP20, Adjustable Output, PFC
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	102 W
Size / Dimension [x]	129 mm
Size / Dimension [x]	5.08 in
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Type	Enclosed
Voltage - Input [Max]	264 VAC, 375 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	Efficiency	Voltage - Isolation	Type	Voltage - Output 1	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Mounting Type	Approval Agency
Delta Electronics PMH-12V100WCLS	85 %	4000 V	Enclosed	12 V	Household Appliances ITE (Commercial)	30 mm	129 mm	5.08 in	3.82 in	1.18 in	97 mm	70 °C	-30 °C	Adjustable Output IP20 PFC Universal Input	102 W	264 VAC 375 VDC	85 VAC 120 VDC	1	Chassis Mount	CB CE cURus EAC SIQ
