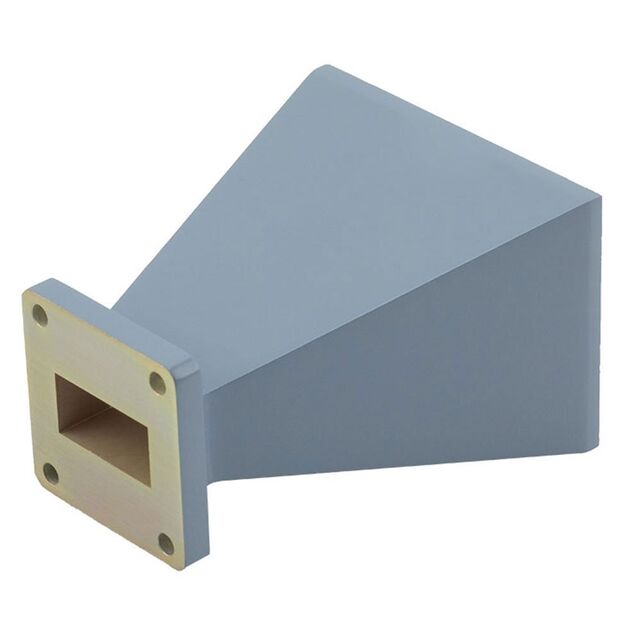

FMWAN102-15
ActiveFairview Microwave
WG ANTENNA WR-102 7-11 GHZ
FMWAN102-15
ActiveFairview Microwave
WG ANTENNA WR-102 7-11 GHZ
Description
General part information
FMWAN102-15
RF ANTENNA General Purpose Horn Screw-Mount Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWAN102-15 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 9 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 11 GHz |
| Frequency Range (Min) | 7 GHz |
| Gain | 15 dBi |
| Height (Max) | 1.99 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | Screw-Mount |
| VSWR | 1.3 |
