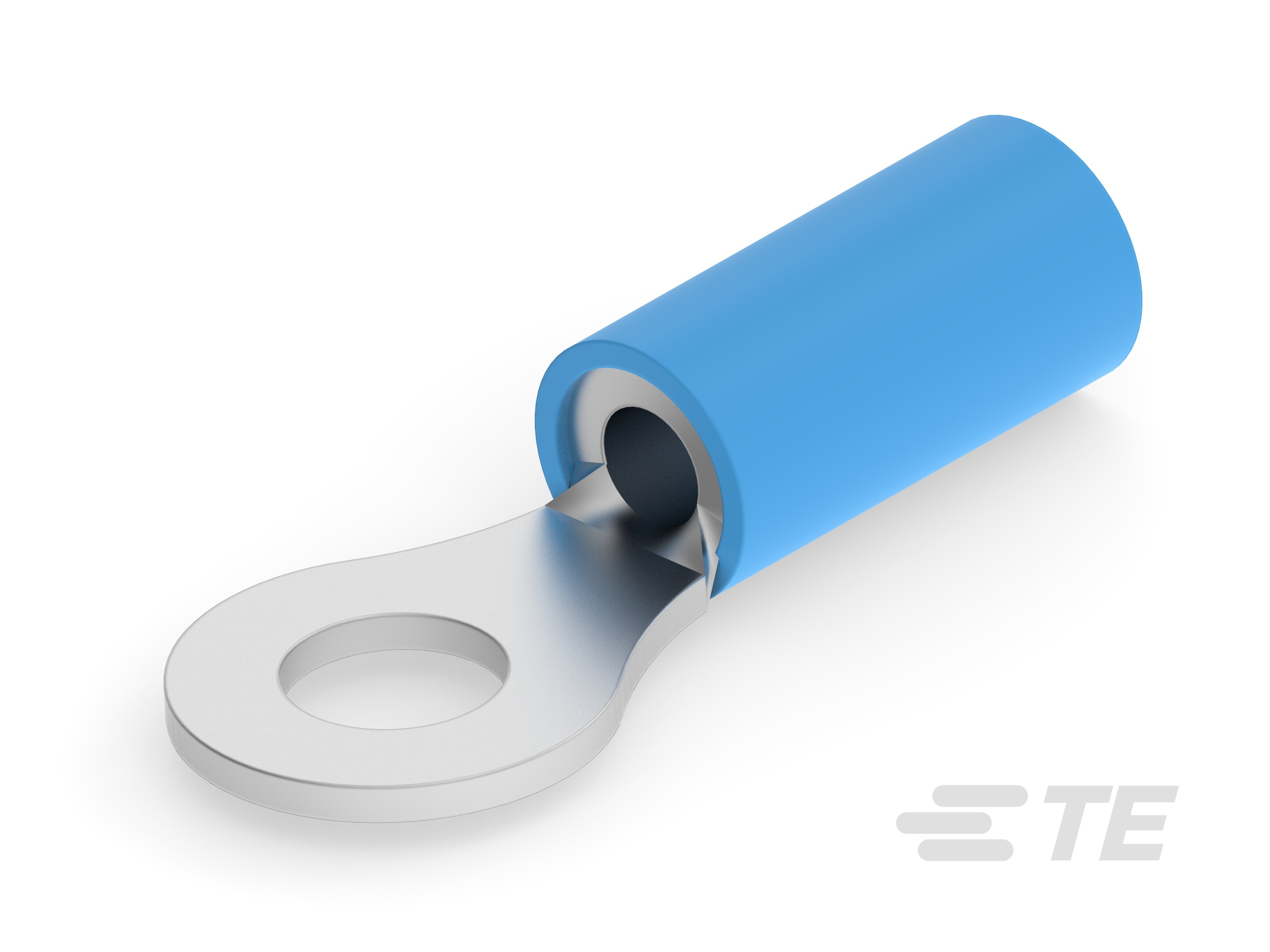

Specification	7-1377173-3

Color	Blue
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter (Max)	0.17 in
Insulation Diameter (Min)	0.115 in
Length - Overall	0.859 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Width - Outer Edges	0.343 in
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

1377173 Series

Terminals TERMINAL R PVF2 PG

Part	Length - Termination	Length - Ring Center to Termination	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Tongue Inside Opening	Features	Mounting Type	Color	Terminal Type	Insulation	Stud/Tab Size	Width - Outer Edges	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Termination	Contact Material	Length - Overall	Contact Finish	Thickness	Pin Diameter Shape	Pin Diameter	Length - Pin	Pin Diameter Height	Pin Diameter Width	Stud/Tab Size	Number of Wire Entries
TE Connectivity AMP Connectors 1-1377173-8	0.416 in	0.312 in	Poly-Vinyl Chloride PVC	0.105 in	0.14 in	0.171 in	Serrated Termination	Free Hanging (In-Line)	Red	Standard	Insulated	8 Stud	0.375 in	16 AWG	22 AWG	Crimp	Copper	0.92 in
TE Connectivity AMP Connectors 9-1377173-9		0.437 in	Nylon PA Polyamide	0.115 in	0.17 in	0.25 in		Free Hanging (In-Line)	Blue	Standard	Insulated	0.25 Stud	0.475 in	14 AWG	16 AWG	Crimp	Copper	1.103 in	Tin
TE Connectivity AMP Connectors 1377173-6			Poly-Vinyl Chloride PVC	0.118 in	0.193 in		Serrated Termination	Free Hanging (In-Line)	Blue	Circular	Insulated	0.25 Stud	0.469 in	14 AWG	16 AWG	Crimp	Copper	1.09 in	Tin	0.031 in
TE Connectivity AMP Connectors 4-1377173-5			Poly-Vinyl Chloride PVC	0.115 in	0.19 in		Serrated Termination		Blue		Insulated			14 AWG	16 AWG	Crimp	Copper	0.813 in	Tin		Circular	0.071 in	0.264 in
TE Connectivity AMP Connectors 3-1377173-8	0.617 in	0.44 in	Poly-Vinyl Chloride PVC	0.15 in	0.252 in	0.25 in	Serrated Termination	Free Hanging (In-Line)	Yellow	Standard	Insulated	0.25 Stud	0.53 in	10 AWG	12 AWG	Crimp	Copper	1.102 in 1.307 in	Tin
TE Connectivity AMP Connectors 5-1377173-0	0.693 in		Poly-Vinyl Chloride PVC	0.15 in	0.252 in		Serrated Termination		Yellow		Insulated			10 AWG	12 AWG	Crimp	Copper	1.157 in	Tin		Rectangular		0.465 "	0.031 in	0.165 in
TE Connectivity AMP Connectors 3-1377173-7	0.617 in	0.44 in	Poly-Vinyl Chloride PVC	0.15 in	0.252 in	0.205 in	Serrated Termination	Free Hanging (In-Line)	Yellow	Standard	Insulated		0.53 in	10 AWG	12 AWG	Crimp	Copper	1.307 in	Tin							M5 M5 Stud
TE Connectivity AMP Connectors 5-1377173-6							Serrated Mating Area		Blue	Individual Openings (Parallel) Inline	Fully Insulated			14 AWG	16 AWG	Crimp											2
TE Connectivity AMP Connectors 4-1377173-0								Free Hanging (In-Line)	Yellow	Flanged	Insulated	10 Stud	0.416 in	10 AWG	12 AWG	Crimp	Copper	1.102 in	Tin
TE Connectivity AMP Connectors 5-1377173-2							Serrated Mating Area		Red	Butt Splice Individual Openings Inline	Fully Insulated			16 AWG	22 AWG	Crimp											2
