F222K69Y5RP63K7R
ActiveVishay Dale
CERAMIC DISC & PLATE CAPACITOR, F SERIES, 2200 PF, 10%, Y5R, 2 KV, RADIAL LEADED ROHS COMPLIANT: YES
F222K69Y5RP63K7R
ActiveVishay Dale
CERAMIC DISC & PLATE CAPACITOR, F SERIES, 2200 PF, 10%, Y5R, 2 KV, RADIAL LEADED ROHS COMPLIANT: YES
Description
General part information
F222K69Y5RP63K7R

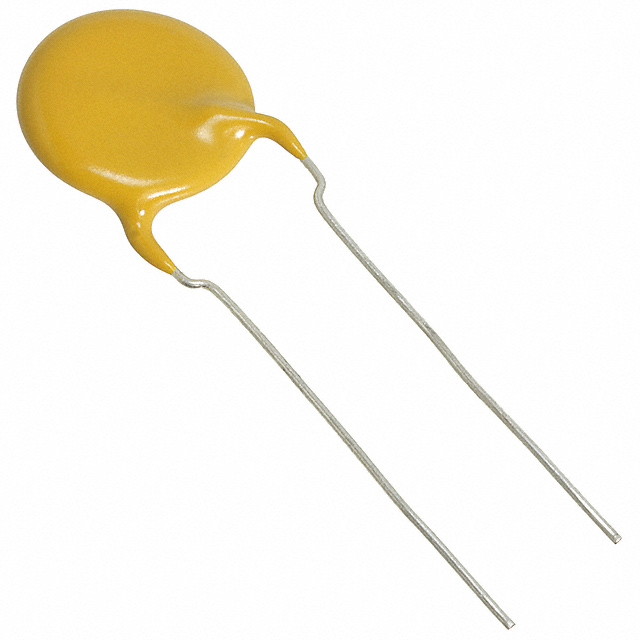

2200 pF ±10% 2000V (2kV) Ceramic Capacitor Y5R Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | F222K69Y5RP63K7R |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 2200 pF |
| Features | High Voltage |
| Height - Seated (Max) | 0.197 in |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.689 in |
| Temperature Coefficient | Y5R |
| Tolerance | 10 % |
| Voltage - Rated | 2000 VAC |
