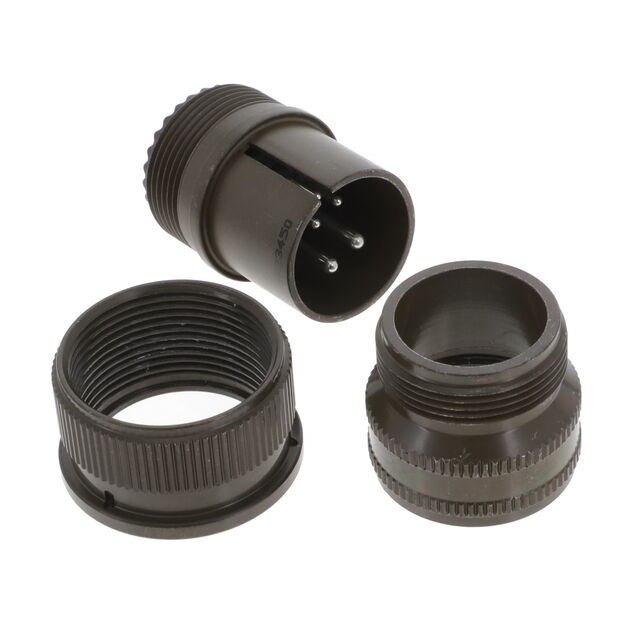

Specification	MS3106A18-9P

Applications	Marine, Military
Backshell Material	Aluminum Alloy
Color	Olive Drab
Connector Type	Male Pins, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Plating	Olive Drab Chromate over Cadmium
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert Length	18 mm
Shell Size - Insert Width	9 mm
Shielding	Unshielded
Termination	Solder Cup

MS3106A18 Series

Part	Termination	Mounting Type	Shielding	Number of Positions	Connector Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Contact Material	Shell Finish	Applications	Insert Material	Shell Material	Color	Backshell Material	Plating	Qualification	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Contact Finish - Mating	Primary Material	Fastening Type	Grade	Current Rating Options	Ingress Protection	Voltage Rating (DC)	Voltage Rating (AC)	Shell Size - Insert Length	Shell Size - Insert Width
Amphenol Aerospace Operations MS3106A18-1P-RES
Amphenol Aerospace Operations MS3106A18-23P
Amphenol Aerospace Operations MS3106A18-7P
Amphenol Aerospace Operations MS3106A18-22S-RES
Amphenol Aerospace Operations MS3106A18-11PX-RES
Amphenol Aerospace Operations MS3106A18-31P
Amphenol Aerospace Operations MS3106A18-20S	Solder Cup	Free Hanging (In-Line)	Unshielded	5	Female Sockets Plug	Backshell Coupling Nut	125 °C	-55 °C	N (Normal)	Copper Alloy	Cadmium Olive Drab Chromate	Marine Military	Neoprene	Aluminum Alloy	Olive Drab	Aluminum Alloy	Olive Drab Chromate over Cadmium	MIL-DTL-5015	18	20	Silver	Metal	Threaded
Amphenol Aerospace Operations MS3106A18-5P	Solder Cup	Free Hanging (In-Line)	Unshielded	3	Male Pins Plug	Backshell Coupling Nut	125 °C	-55 °C	N (Normal)	Copper Alloy	Cadmium Olive Drab Chromate	Marine Military	Neoprene	Aluminum Alloy	Olive Drab			MIL-DTL-5015			Silver	Metal	Threaded	Military	13A 23A	Environment Resistant	1250 VDC	900 VAC	18 mm	5 mm
Amphenol Aerospace Operations MS3106A18-14P
Amphenol Aerospace Operations MS3106A18-1PZ
