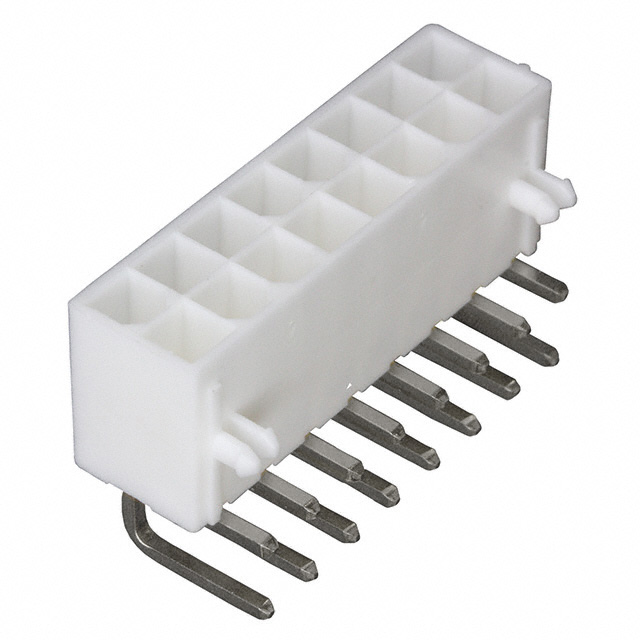

Specification	0039301162

Applications	Telecommunications, General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Natural
Insulation Height	0.378 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.165 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

003930 Series

Headers & Wire Housings MINI-FIT JR HDR 03P RA 94V-0

...

Part	Fastening Type	Insulation Height	Number of Positions Loaded	Contact Material	Mounting Type	Pitch - Mating	Number of Rows	Termination	Row Spacing - Mating	Contact Shape	Insulation Color	Style	Features	Contact Finish - Mating	Material Flammability Rating	Contact Length - Post	Insulation Material	Contact Finish Thickness - Mating	Shrouding	Contact Type	Number of Positions	Contact Finish - Post	Connector Type	Contact Finish Thickness - Post	Applications
Molex 0039301040	Locking Ramp	0.378 in	All	Brass	Right Angle Through Hole	0.165 in	2	Solder	0.165 in	Square	Natural	Board Cable/Wire	Board Lock	Tin	UL94 V-2	0.142 in	Nylon 6/6 Polyamide (PA66)	100 µin	Shrouded - 4 Wall	Male Pin	4	Tin	Header	100 Ąin	General Purpose Industrial Telecommunications
Molex 0039303056	Locking Ramp	0.504 in	All	Brass	Right Angle Through Hole	0.165 in	1	Solder		Square	Natural	Board Cable/Wire	Board Lock	Tin	UL94 V-0	0.138 in	Nylon 6/6 Polyamide (PA66)	100 µin	Shrouded - 4 Wall	Male Pin	5	Tin	Header	100 Ąin	General Purpose Industrial Telecommunications
Molex 0039301101	Locking Ramp	0.378 in	All	Brass	Right Angle Through Hole	0.165 in	2	Solder	0.165 in	Square	Natural	Board Cable/Wire	Board Lock	Gold	UL94 V-2	0.142 in	Nylon 6/6 Polyamide (PA66)	30 µin	Shrouded - 4 Wall	Male Pin	10	Tin	Header	100 Ąin	General Purpose Industrial Telecommunications
Molex 0039307052	Locking Ramp	0.504 in	All	Brass	Right Angle Through Hole	0.165 in	1	Solder		Square	Natural	Board Cable/Wire	Board Lock	Tin	UL94 V-0	0.138 in	Nylon 6/6 Polyamide (PA66)	100 µin	Shrouded - 4 Wall	Male Pin	5	Tin	Header	100 Ąin	General Purpose Industrial Telecommunications
Molex 0039306021	Locking Ramp	0.504 in	All	Brass	Through Hole		2	Solder	0.165 in	Square	Natural	Board Cable/Wire		Tin	UL94 V-2	0.138 in	Nylon 6/6 Polyamide (PA66)	100 µin	Shrouded - 4 Wall	Male Pin	2	Tin	Header	100 Ąin	General Purpose Industrial Telecommunications
Molex 0039300107	Locking Ramp	0.504 in	All	Brass	Through Hole	0.165 in	2	Solder	0.165 in	Square	Natural	Board Cable/Wire	Board Lock	Gold	UL94 V-0	0.138 in	Nylon 6/6 Polyamide (PA66)	15 µin	Shrouded - 4 Wall	Male Pin	10	Tin	Header	100 Ąin	General Purpose Industrial Telecommunications
Molex 0039301049	Locking Ramp	0.504 in	All	Brass	Through Hole	0.165 in	1	Solder		Square	Natural	Board Cable/Wire	Board Lock	Tin	UL94 V-2	0.138 in	Nylon 6/6 Polyamide (PA66)	35.4 µin	Shrouded - 4 Wall	Male Pin	4	Tin	Header	35 µin	General Purpose Industrial Telecommunications
Molex 0039302045	Locking Ramp	0.504 in	All	Brass	Through Hole	0.165 in	1	Solder		Square	Natural	Board Cable/Wire	Board Lock	Tin	UL94 V-0	0.138 in	Nylon 6/6 Polyamide (PA66)	35.4 µin	Shrouded - 4 Wall	Male Pin	4	Tin	Header	35 µin	General Purpose Industrial Telecommunications
Molex 0039306147	Locking Ramp	0.504 in	All	Brass	Through Hole	0.165 in	2	Solder	0.165 in	Square	Natural	Board Cable/Wire	Board Lock	Tin	UL94 V-0	0.138 in	Nylon 6/6 Polyamide (PA66)	100 µin	Shrouded - 4 Wall	Male Pin	14	Tin	Header	100 Ąin	General Purpose Industrial Telecommunications
Molex 0039306025	Locking Ramp	0.504 in	All	Brass	Through Hole		2	Solder	0.165 in	Square	Natural	Board Cable/Wire	Board Lock	Tin	UL94 V-0	0.138 in	Nylon 6/6 Polyamide (PA66)	100 µin	Shrouded - 4 Wall	Male Pin	2	Tin	Header	100 Ąin	General Purpose Industrial Telecommunications
