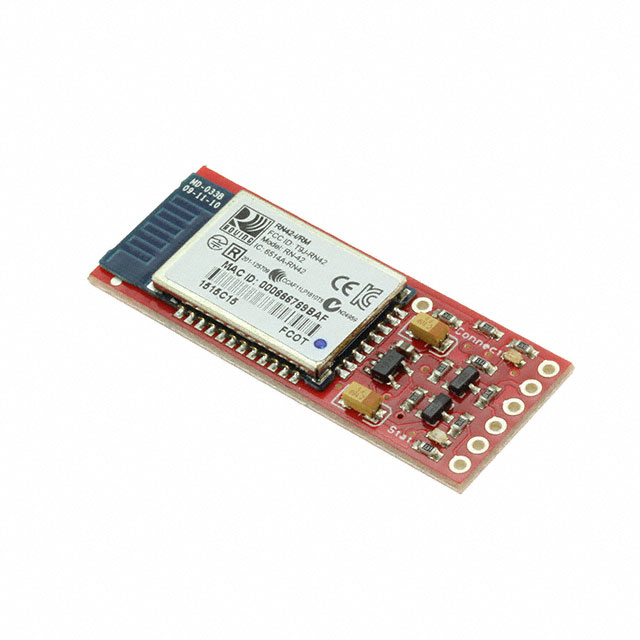

WRL-12577
Bluetooth Bluetooth v2.1 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | WRL-12577 |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 40 mA |
| Current - Transmitting | 40 mA |
| Data Rate | 3 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK, FHSS |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 35-SMD Module |
| Power - Output | 2 dBm |
| Protocol | Bluetooth v2.1 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -86 dBm |
| Serial Interfaces | SPI, USB, UART |
| Utilized IC / Part | BlueCore4 |
| Voltage - Supply (Maximum) | 6 V |
| Voltage - Supply (Minimum) | 3.3 V |
