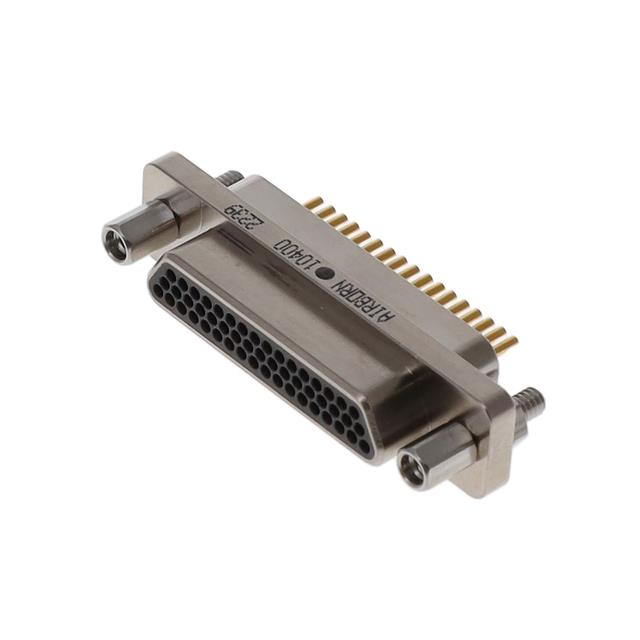

MM-312-051-113-2200
ActiveAirBorn, a Molex company
CONN MICRO-D PLUG 51POS SLDR CUP
MM-312-051-113-2200
ActiveAirBorn, a Molex company
CONN MICRO-D PLUG 51POS SLDR CUP
Description
General part information
MM-312-051-113-2200
51 Position D-Type, Micro-D Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | MM-312-051-113-2200 |
|---|---|
| Connector Layout Pitch | 0.05 |
| Connector Layout Row to Row | 0.05 |
| Connector Style | Micro-D, D-Type |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Beryllium Copper |
| Contact Type | Signal |
| Current Rating | 3 A |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 51 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Metal |
| Shell Material, Finish | Nickel Plated, Aluminum Alloy, Electroless |
| Termination | Solder Cup |
