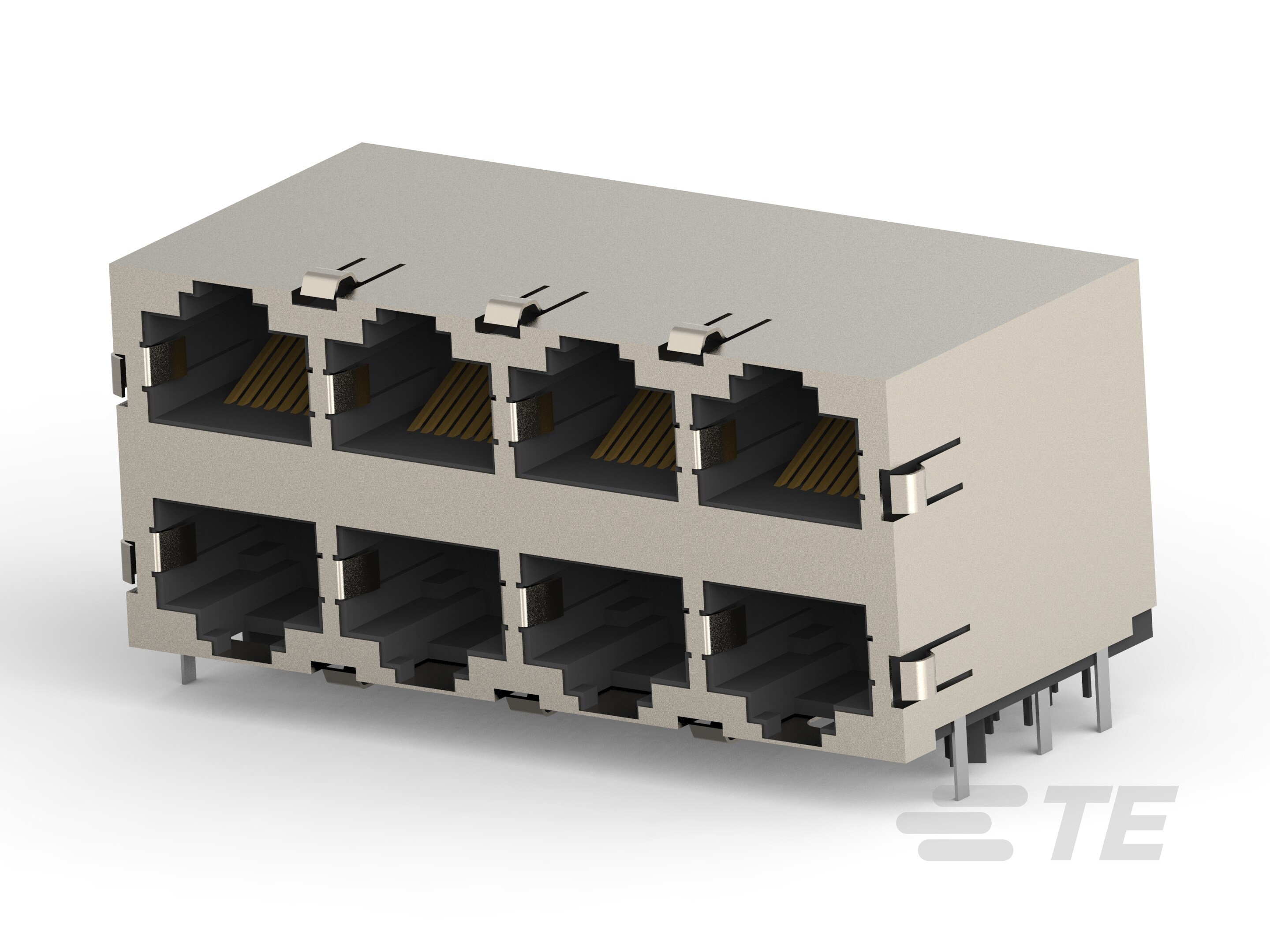

STK MJ ASSY,8POS,2X4,SHLD,CAT5-1-5569262-1

1-5569262-1

NRND
TE Connectivity AMP Connectors

CONN MOD JACK 8P8C R/A SHIELDED

Find alt
STK MJ ASSY,8POS,2X4,SHLD,CAT5-1-5569262-1

1-5569262-1

NRND
TE Connectivity AMP Connectors

CONN MOD JACK 8P8C R/A SHIELDED

Find alt

Description

General part information

1-5569262-1

RJ45 Connector, Multiple Ports, 2 x 4, Jack, Shielded, Cat 5, Standard - Latch Down, 8 Position, Low Profile, Through Hole - Solder, AMP-METRIMATE

Technical Specifications

Parameters and characteristics for this part

Specification1-5569262-1
Connector TypeJack, Ethernet, RJ45
Contact FinishGold
Contact MaterialPhosphor Bronze
FeaturesBoard Guide
LED ColorDoes Not Contain LED
Mounting TypeThrough Hole
Number of Contacts8
Number of Ports8
Number of Positions8
Number of Rows2
Orientation Angle90 °
Orientation DirectionRight
RatingsCat5
ShieldingEMI Finger, Shielded
Tab DirectionDown, Up
TerminationSolder
