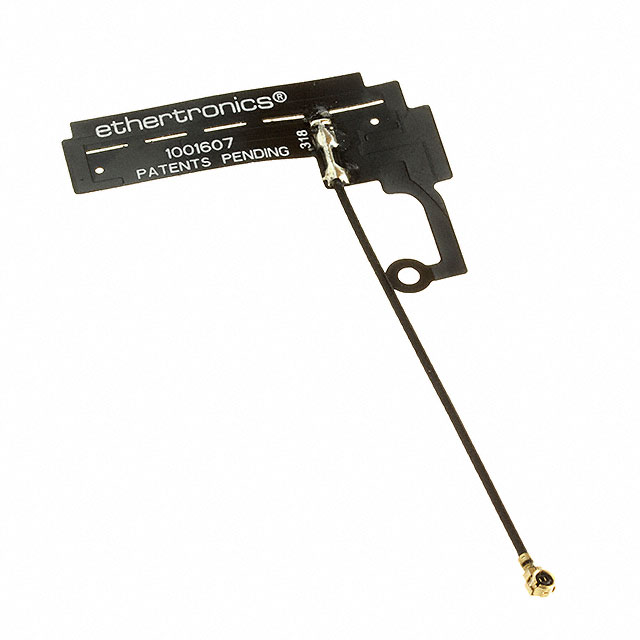

1001607
ActiveKYOCERA AVX
RF ANT 850/900MHZ PCB TRACE 66MM
1001607
ActiveKYOCERA AVX
RF ANT 850/900MHZ PCB TRACE 66MM
Description
General part information
1001607
RF ANTENNA CDMA, DCS, GSM, PCS, UMTS, WCDMA PCB Trace Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 1001607 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | CDMA, DCS, GSM, WCDMA, UMTS, PCS |
| Frequency (Center/Band) | 1.8GHz, 850MHz, 2.1GHz, 900MHz, 1.9GHz |
| Frequency (Center/Band) - 1 | 850 MHz |
| Frequency (Center/Band) - 2 | 900 MHz |
| Frequency (Center/Band) - 3 | 1.8 GHz |
| Frequency (Center/Band) - 4 | 1.9 GHz |
| Frequency (Center/Band) - 5 | 2.1 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 824 MHz |
| Frequency Range (Band 2) Maximum | 2.17 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Height (Max) | 0.049 in |
| Mounting Type | Adhesive |
| Number of Bands | 5 |
| Power - Max | 2 VA |
| RF Family/Standard | Cellular |
| VSWR | 3 |
