73M1R082F
ActiveCTS Resistor Products
RES 0.082 OHM 1% 1W 2512
73M1R082F
ActiveCTS Resistor Products
RES 0.082 OHM 1% 1W 2512
Description
General part information
73M1R082F

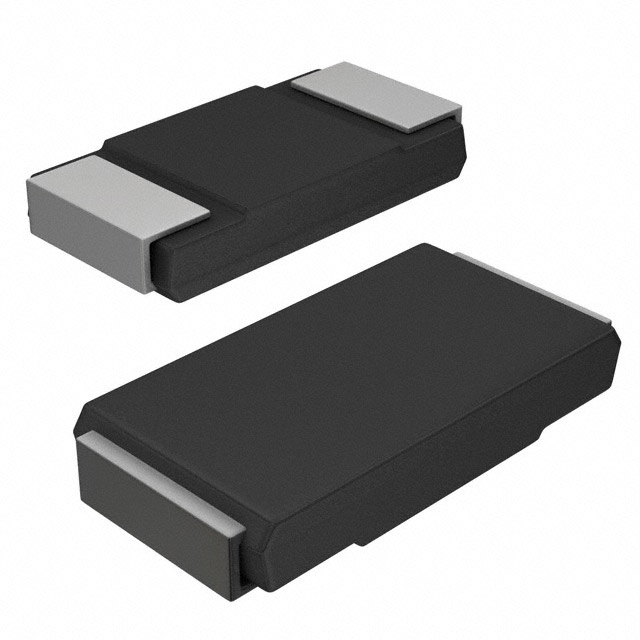

82 mOhms ±1% 1W Chip Resistor 2512 J-Lead Current Sense Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | 73M1R082F |
|---|---|
| Composition | Metal Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.047 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 180 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2512 J-Lead |
| Package Name | 2512 |
| Power (Watts) | 1 W |
| Resistance | 82 mOhms |
| Size / Dimension Length | 0.244 in |
| Size / Dimension Width | 0.122 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
