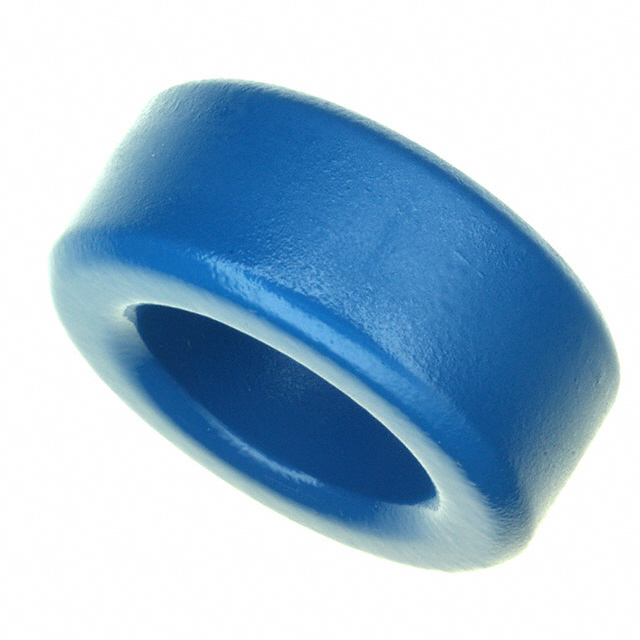

Specification	B64290L0082X830

Core Factor (ΣI/A)	0.62 mm⁻²
Core Factor (ΣI/A) mm⁻¹	0.62 mm⁻¹
Core Type	Toroid
Diameter	2.04 in
Effective Area (Ae)	195.7 mm²
Effective Length (le)	120.4 mm
Effective Magnetic Volume (Ve)	23560 mm³
Finish	Epoxy
Gap	Ungapped
Height	0.839 in
Inductance Factor (Al)	8.7 µH
Initial Permeability (µi)	4300
Material	N30
Tolerance	25 %
