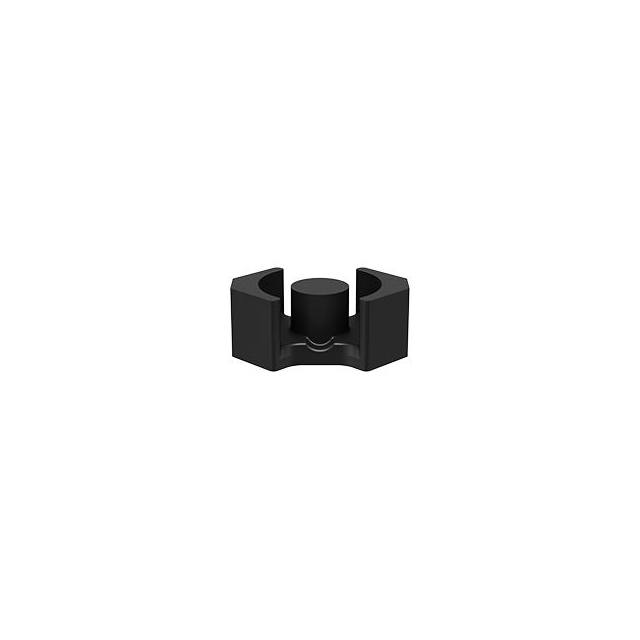

Specification	B65819J0160J041

Core Factor (ΣI/A)	0.7 mm⁻²
Core Factor (ΣI/A) mm⁻¹	0.7 mm⁻¹
Core Type	RM
Effective Area (Ae)	43 mm²
Effective Length (le)	30.4 mm
Effective Magnetic Volume (Ve)	1310 mm³
Effective Permeability (µe)	90
Finish	Uncoated
Gap	Gapped
Height	0.265 in
Inductance Factor (Al)	160 nH
Initial Permeability (µi)	2800
Length	0.799 in
Material	N41
Minimum Core Cross Section (Amin) (mm²)	39 mm²
Package Name	RM 7
Tolerance	5 %
