Part	Coil Voltage	Coil Insulation	Contact Form	Contact Material	Coil Type	Quick Connect Size (0.187")	Termination Style	Switching Voltage AC (Max)	Contact Rating (Current)	Operate Time	Must Operate Voltage	Mounting Type	Load - Max Switching (Apparent Power)	Coil Current	Relay Type	Operating Temperature (Min)	Operating Temperature (Max)	Release Time	Approval Agency	Coil Resistance	Pin Count	For Use With/Related Products	Accessory Type	Features
TE Connectivity AMP Connectors KUP-11D55-12	12 VAC	Class B	2 2 Form C C DPDT Form	Silver Cadmium Oxide (AgCdO)	Non Latching	0.187 in	Quick Connect	240 VAC	10 A	15 ms	9 VDC	Chassis Mount	2400 VA	100 mA	General Purpose	-45 °C	70 °C	10 ms	CSA UR	120 Ohms
TE Connectivity AMP Connectors KUP-11A11-120	120 V	Class B	2 2 Form C C DPDT Form	Silver (Ag)	Non Latching	0.187 in	Plug In Quick Connect	240 VAC	5 A	15 ms	102 VAC	Socketable	1200 VA	17.5 mA	General Purpose	-45 °C	55 °C	10 ms	CSA UR
TE Connectivity AMP Connectors KUP-14D15-110	110 V	Class B	3 Form C PDT	Silver Cadmium Oxide (AgCdO)	Non Latching	0.187 in	Plug In Quick Connect	240 VAC	10 A	15 ms	82.5 VDC	Socketable	2400 VA	11 mA	General Purpose	-45 °C	70 °C	10 ms	CSA UR		3 pins
TE Connectivity AMP Connectors 20C228																						KU Series	Clip Hold Down
TE Connectivity AMP Connectors KUP-11A55F-120	120 V	Class B	2 2 Form C C DPDT Form	Gold (Au) Silver Cadmium Oxide (AgCdO)	Non Latching	0.187 in	Plug In Quick Connect	240 VAC	10 A	15 ms	204 VAC	Chassis Mount	2400 VA	13.2 mA	General Purpose	-45 °C	55 °C	10 ms	CSA UR
TE Connectivity AMP Connectors 24A071																						24A110	Clip Hold Down
TE Connectivity AMP Connectors KUP-11D55-110	110 V	Class B	2 2 Form C C DPDT Form	Silver Cadmium Oxide (AgCdO)	Non Latching	0.187 in	Quick Connect	240 VAC	10 A	15 ms	82.5 VDC	Chassis Mount	2400 VA	11 mA	General Purpose	-45 °C	70 °C	10 ms	CSA UR
TE Connectivity AMP Connectors KUP-14D45-24	24 VDC	Class B	3 Form C PDT	Silver Cadmium Oxide (AgCdO)	Non Latching	0.187 in	Plug In Quick Connect	240 VAC	10 A	15 ms	18 VDC	Socketable	2400 VA	51 mA	General Purpose	-45 °C	70 °C	10 ms	CSA UR		3 pins			Lighted Indicator Test Button
TE Connectivity AMP Connectors KUP-14D11F-24	24 VDC	Class B	3 Form C PDT	Gold (Au) Silver Cadmium Oxide (AgCdO)	Non Latching	0.187 in	Plug In Quick Connect	240 VAC	5 A	15 ms	18 VDC	Socketable	1200 VA	51 mA	General Purpose	-45 °C	70 °C	10 ms	CSA UR		3 pins
TE Connectivity AMP Connectors 20C228																						KU Series	Clip Hold Down

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

UL_CERT_E59244_19821022_C1

Definitions General Purpose Relays

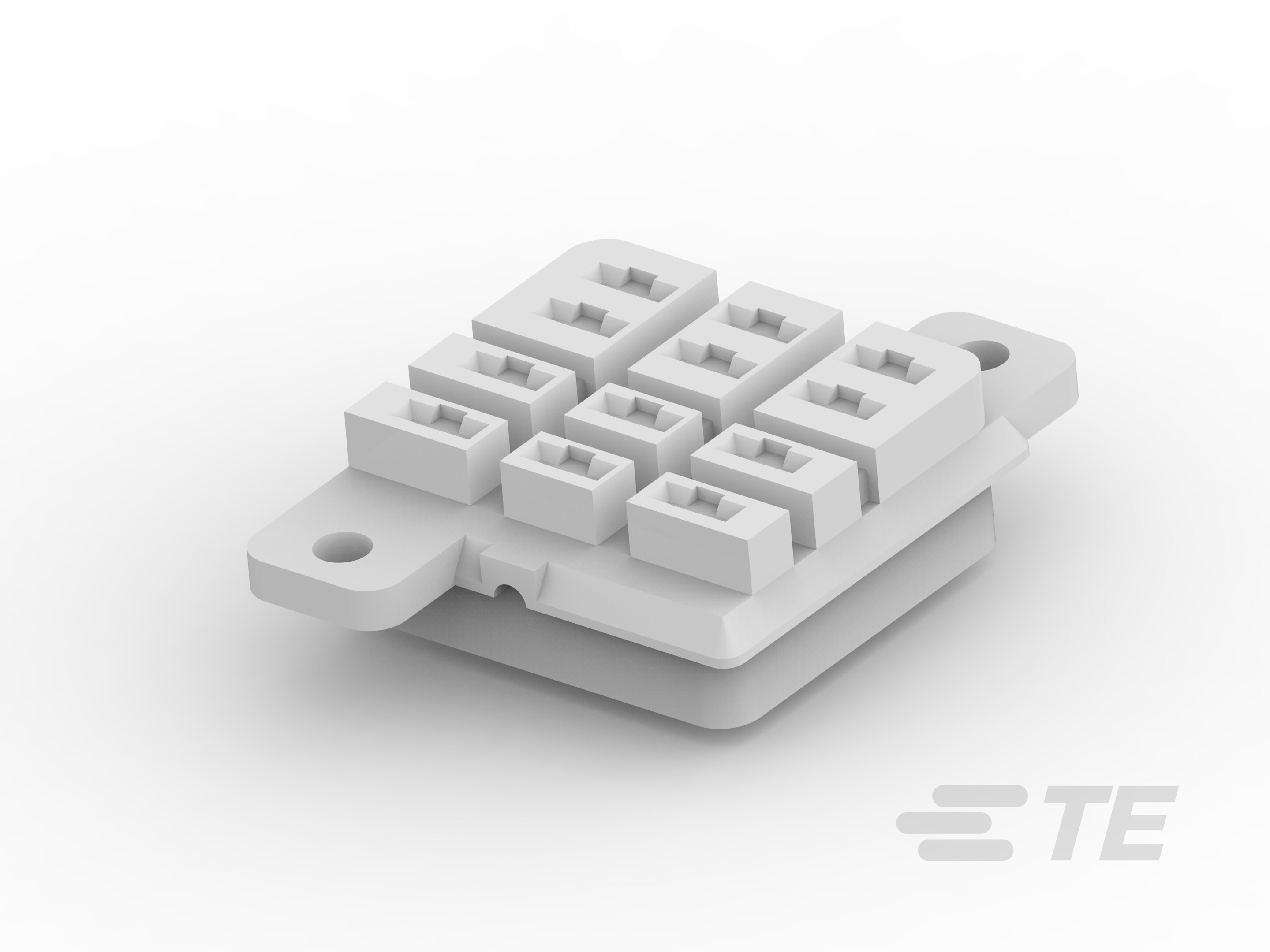

27E043 | Datasheet
