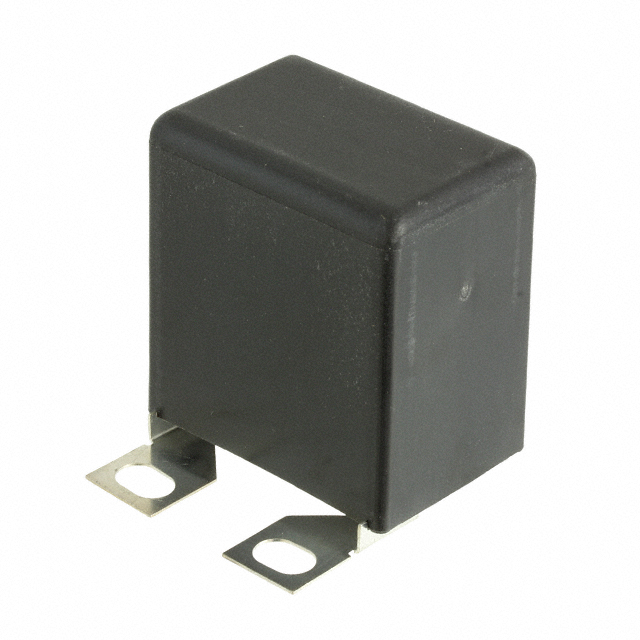

Specification	MKP386M520125JT4

Applications	Snubber
Capacitance	2 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	5.5 mOhm
Features	Low ESR
Height - Seated (Max)	1.811 in
Lead Spacing	0.866 in
Mounting Type	Chassis Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Rectangular Box
Size / Dimension Length	1.732 in
Size / Dimension Width	1.181 in
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - AC	550 V
Voltage Rating - DC	1250 V
