VWS106-C20

Active

Panduit Corp

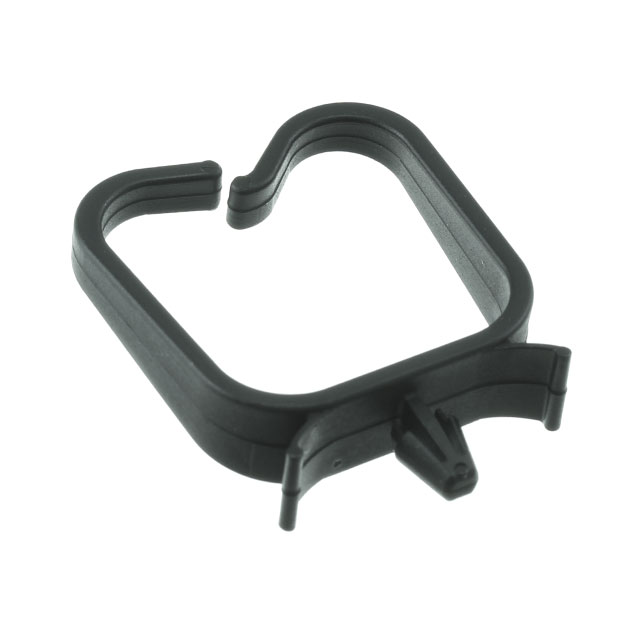

CBL CLIP WIRE SADDLE BLACK ARROW

Search across all available documentation for this part.

Active

Panduit Corp

CBL CLIP WIRE SADDLE BLACK ARROW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VWS106-C20	VWS106 Series

Color	Black	Black, Natural
Height [z]	33.02 mm	33.02 mm
Height [z]	33.02 mm	33.02 mm
Length	29.97 mm	29.97 mm
Length	1.18 in	1.18 in
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2
Mounting Type	Arrowhead, Winged	Arrowhead, Winged
Opening Size [z]	26.92 mm	26.92 mm
Opening Size [z]	1.06 in	1.06 in
Panel Hole Size	4.75 mm	4.75 mm
Panel Hole Size	0.187 in	0.187 in
Panel Thickness	0.09 in	0.09 in
Panel Thickness	2.29 mm	2.29 mm
Type	Clip, Wire Saddle	Clip, Wire Saddle
Width	8.64 mm	8.64 mm
Width	0.34 in	0.34 in

CBL CLIP WIRE SADDLE BLACK ARROW

Part	Color	Type	Panel Hole Size	Panel Hole Size	Width	Width	Opening Size [z]	Opening Size [z]	Height [z]	Height [z]	Material	Material Flammability Rating	Mounting Type	Length	Length	Panel Thickness	Panel Thickness
Panduit Corp VWS106-C20	Black	Clip, Wire Saddle	4.75 mm	0.187 in	8.64 mm	0.34 in	26.92 mm	1.06 in	33.02 mm	33.02 mm	Polyamide (PA66), Nylon 6/6	UL94 V-2	Arrowhead, Winged	29.97 mm	1.18 in	0.09 in	2.29 mm
Panduit Corp VWS106-C	Natural	Clip, Wire Saddle	4.75 mm	0.187 in	8.64 mm	0.34 in	26.92 mm	1.06 in	33.02 mm	33.02 mm	Polyamide (PA66), Nylon 6/6	UL94 V-2	Arrowhead, Winged	29.97 mm	1.18 in	0.09 in	2.29 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Black Arrowhead, Winged 1.060" (26.92mm)
