A10WCM-P12XMM0-0000
ActiveODU
ODU AMC HD PLUG, STY 1, SZ 0, SE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A10WCM-P12XMM0-0000
ActiveODU
ODU AMC HD PLUG, STY 1, SZ 0, SE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A10WCM-P12XMM0-0000 | A10WCM-P Series |
|---|---|---|
| Applications | Medical, Industrial, Military | Medical, Industrial, Military |
| Backshell Material, Plating | Ruthenium over Electroless Nickel, Brass | Ruthenium over Electroless Nickel, Brass |
| Cable Opening [custom] | 0.276 in | 0.276 in |
| Cable Opening [custom] | 7 mm | 7 mm |
| Color | Black, Silver | Black, Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1.27 µm | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin | 50 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 5 A, 1 A | 1 - 5 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 12 | 9 - 12 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -51 °C | -51 °C |
| Orientation | C | C |
| Primary Material | Metal | Metal |
| Shell Finish | Ruthenium over Electroless Nickel | Ruthenium over Electroless Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 0 | 0 |
| Shielding | Shielded | Shielded |
A10WCM-P Series

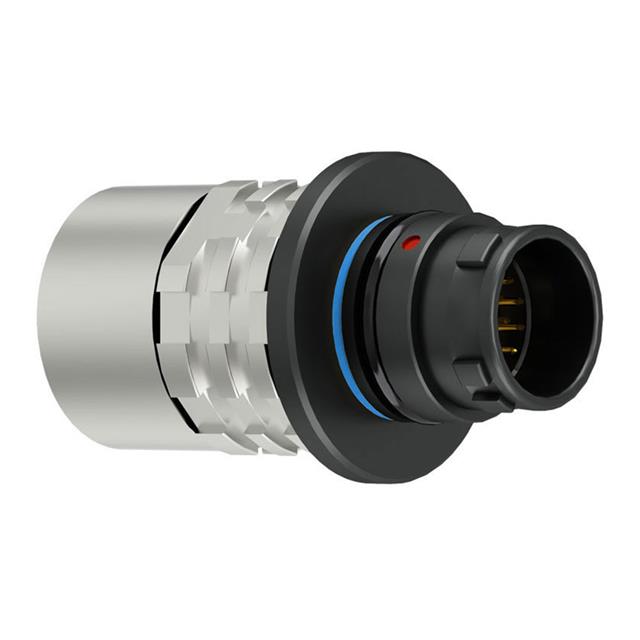

ODU AMC HD PLUG, STY 1, SZ 0, SE
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Insert Material | Applications | Backshell Material, Plating | Orientation | Contact Finish - Mating | Shell Material | Features | Number of Positions | Connector Type | Mounting Type | Fastening Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Material Flammability Rating | Contact Material | Ingress Protection | Shell Size - Insert | Cable Opening [custom] | Cable Opening [custom] | Shell Finish | Primary Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.27 µm | 50 µin | Black, Silver | Polyetheretherketone (PEEK) | Industrial, Medical, Military | Brass, Ruthenium over Electroless Nickel | C | Gold | Brass | Backshell | 12 | Male Pins, Plug | Free Hanging (In-Line) | Detent Lock, Push-Pull | 1 A, 5 A | -51 °C | 125 °C | Shielded | UL94 V-0 | Copper Alloy | IP68 - Dust Tight, Waterproof | 0 | 0.276 in | 7 mm | Ruthenium over Electroless Nickel | Metal | ||
1.27 µm | 50 µin | Black, Silver | Polyetheretherketone (PEEK) | Industrial, Medical, Military | Brass, Ruthenium over Electroless Nickel | C | Gold | Brass | Backshell | Male Pins, Plug | Free Hanging (In-Line) | Detent Lock, Push-Pull | -51 °C | 125 °C | Shielded | UL94 V-0 | Copper Alloy | IP68 - Dust Tight, Waterproof | 0 | 0.276 in | 7 mm | Ruthenium over Electroless Nickel | Metal | 16 | |||
1.27 µm | 50 µin | Black, Silver | Polyetheretherketone (PEEK) | Industrial, Medical, Military | Brass, Ruthenium over Electroless Nickel | C | Gold | Brass | Backshell | 9 | Male Pins, Plug | Free Hanging (In-Line) | Detent Lock, Push-Pull | 1 A, 5 A | -51 °C | 125 °C | Shielded | UL94 V-0 | Copper Alloy | IP68 - Dust Tight, Waterproof | 0 | 0.276 in | 7 mm | Ruthenium over Electroless Nickel | Metal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 133.16 | |
| 10 | $ 103.84 | |||
| 25 | $ 94.58 | |||
| 50 | $ 88.33 | |||
| 100 | $ 82.69 | |||
Description
General part information
A10WCM-P Series
12 (10 + 2 Power) Position Circular Connector Plug, Male Pins Solder Cup
