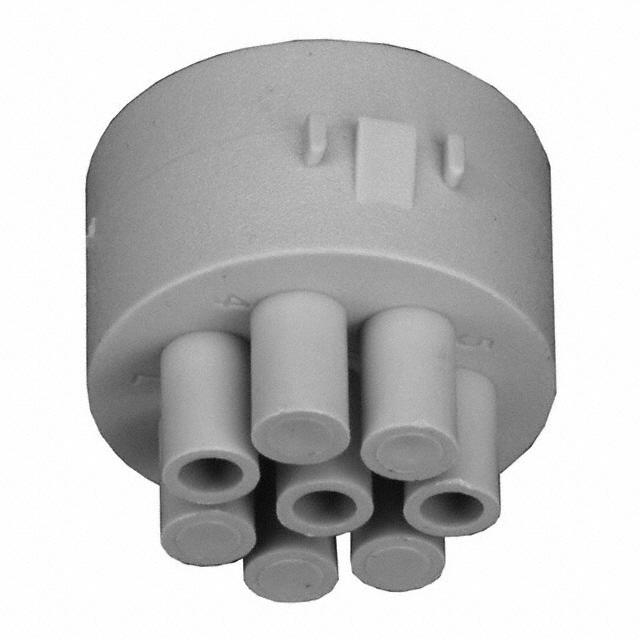

12734/3

Active

BULGIN LIMITED

CONTACT CARRIER INSERT

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONTACT CARRIER INSERT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12734/3	12734 Series

Contact Shape	Circular	Circular
Contact Type	Crimp	Crimp, Solder Cup
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Note	Note: Contacts Not Included; Insert Only, Requires Shell	Note: Contacts Not Included; Insert Only, Requires Shell
Number of Positions [custom]	3	3
Number of Positions [custom]	1	1
Number of Positions [custom]	2	2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	Keyed	Keyed
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

CONTACT CARRIER INSERT

Part	Contact Shape	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shielding	Note	Contact Type	Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Insert Material	Orientation
BULGIN LIMITED 12734/3	Circular	IP68 - Dust Tight, Waterproof	-20 C	70 °C	UL94 V-0	Unshielded	Note: Contacts Not Included; Insert Only, Requires Shell	Crimp	For Male Pins	3	1	2	Nylon, Polyamide (PA)	Keyed
BULGIN LIMITED 12734/3/1	Circular	IP68 - Dust Tight, Waterproof	-20 C	70 °C	UL94 V-0	Unshielded	Note: Contacts Not Included; Insert Only, Requires Shell	Solder Cup	For Male Pins	3	1	2	Nylon, Polyamide (PA)	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (2 Power + PE) Position Circular Connector Insert
