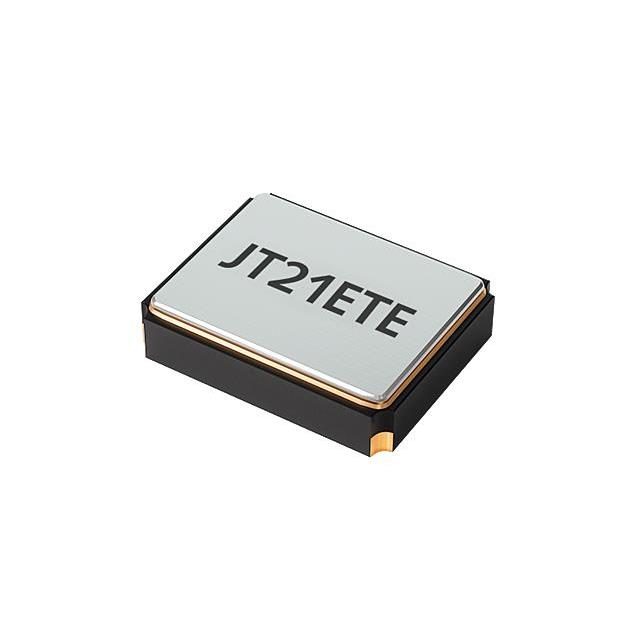

O 38,40-JT21ETE-A-P-3,3-LF
ActiveJauch Quartz
OSC TCXO 38.4MHZ 3.3V CLPSNWV SM
O 38,40-JT21ETE-A-P-3,3-LF
ActiveJauch Quartz
OSC TCXO 38.4MHZ 3.3V CLPSNWV SM
Description
General part information
O 38,40-JT21ETE-A-P-3,3-LF
38.4 MHz TCXO Clipped Sine Wave Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | O 38,40-JT21ETE-A-P-3,3-LF |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 5.5 µA |
| Current - Supply (Max) | 2.5 mA |
| Frequency | 38.4 MHz |
| Frequency Stability | 2.5 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
