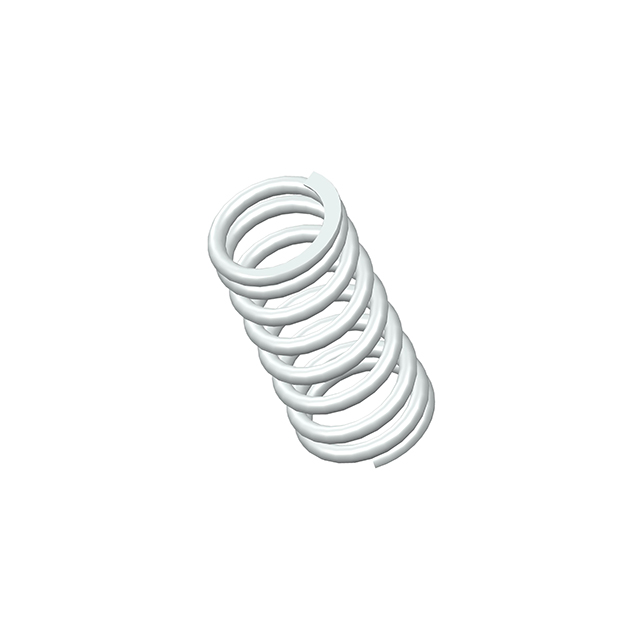

72777SCS
ActiveCentury Spring Corp
COMP O=1.400,L= 3.00,W= .177
72777SCS
ActiveCentury Spring Corp
COMP O=1.400,L= 3.00,W= .177
Description
General part information
72777SCS
COMP O=1.400,L= 3.00,W= .177
Technical Specifications
Parameters and characteristics for this part
| Specification | 72777SCS |
|---|---|
| Diameter - Inside | 1.046 in |
| Diameter - Outside | 1.4 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 3 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 102 lbs/in |
| Type | Compression |
| Wire Diameter | 0.177 in |
